# SMS Center For WHMCS

# (opens new window) About SMS Center For WHMCS (opens new window)

SMS Center For WHMCS is a module created to send text messages to your clients and administrators.

You will be given the possibility to choose from over 80 different SMS gateways, define SMS templates in various languages, and manage bulk text messaging.
The module will also allow you to verify new clients and orders as well as enable SMS codes as part of two-factor authentication while logging in to your system.
Finally, your customers will be enabled to decide whether they wish to receive certain notifications or not.

Admin Area Features
- Notify Your Clients And Administrators Via SMS Messages
- Use Single Or Multiple Configurations Per SMS Gateway
- Define SMS Gateway Rules Per Country
- Send SMS Using Client's Phone Number Field Or Custom Field

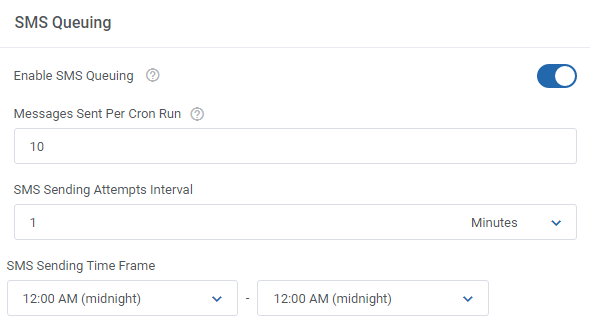

- Use SMS Queue To Send SMS Within Defined Time Period

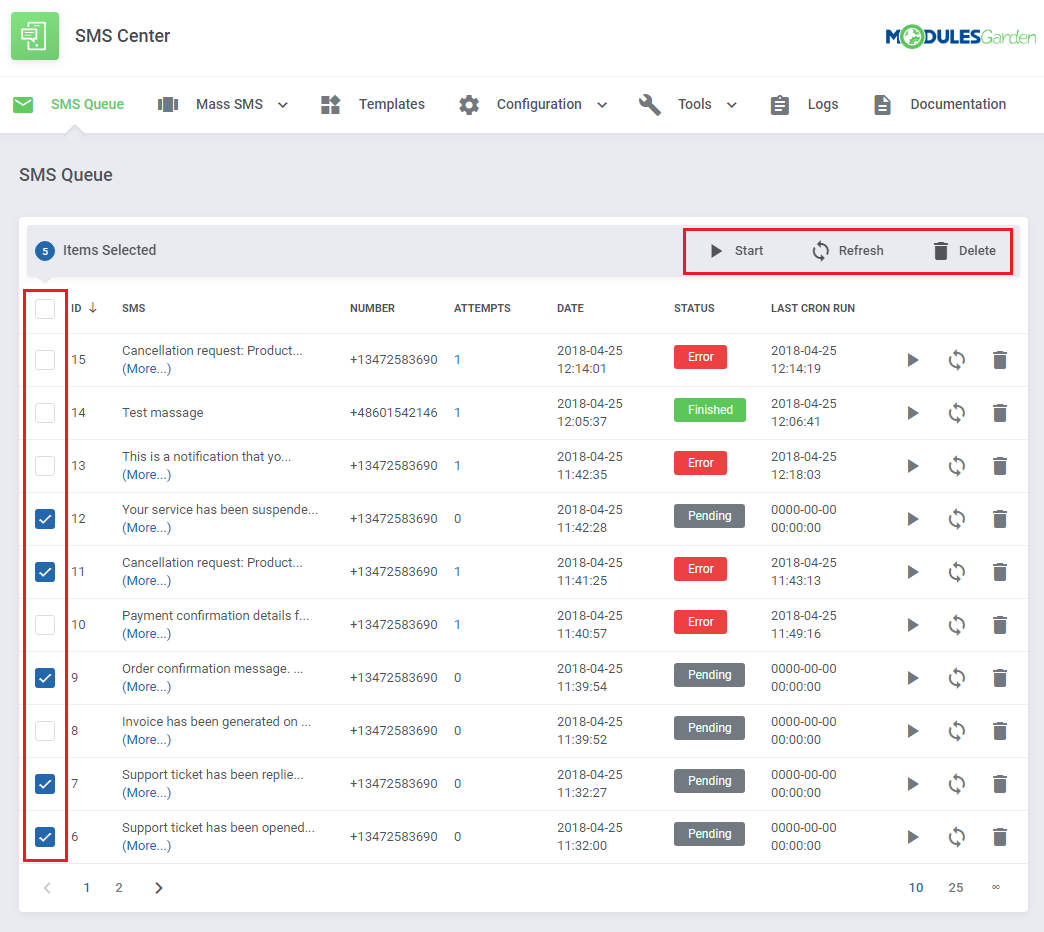

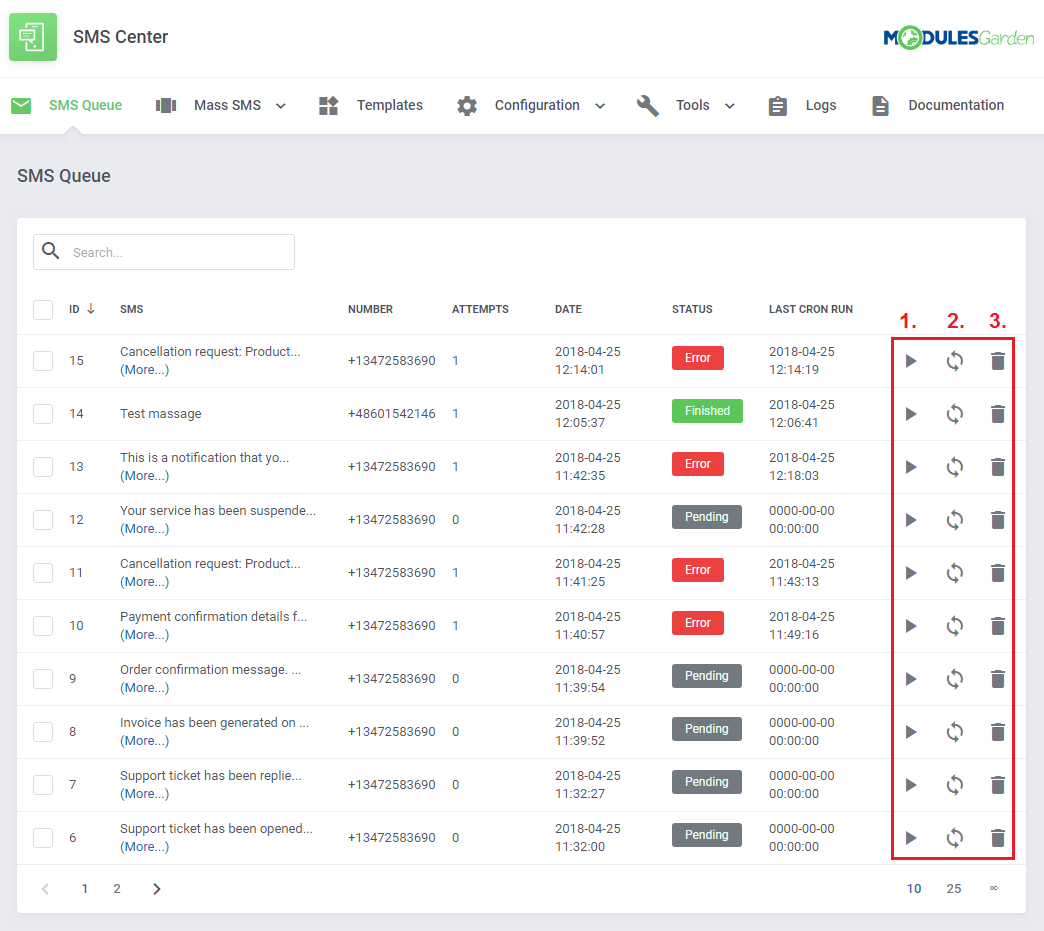

- Manage List Of Queued SMS

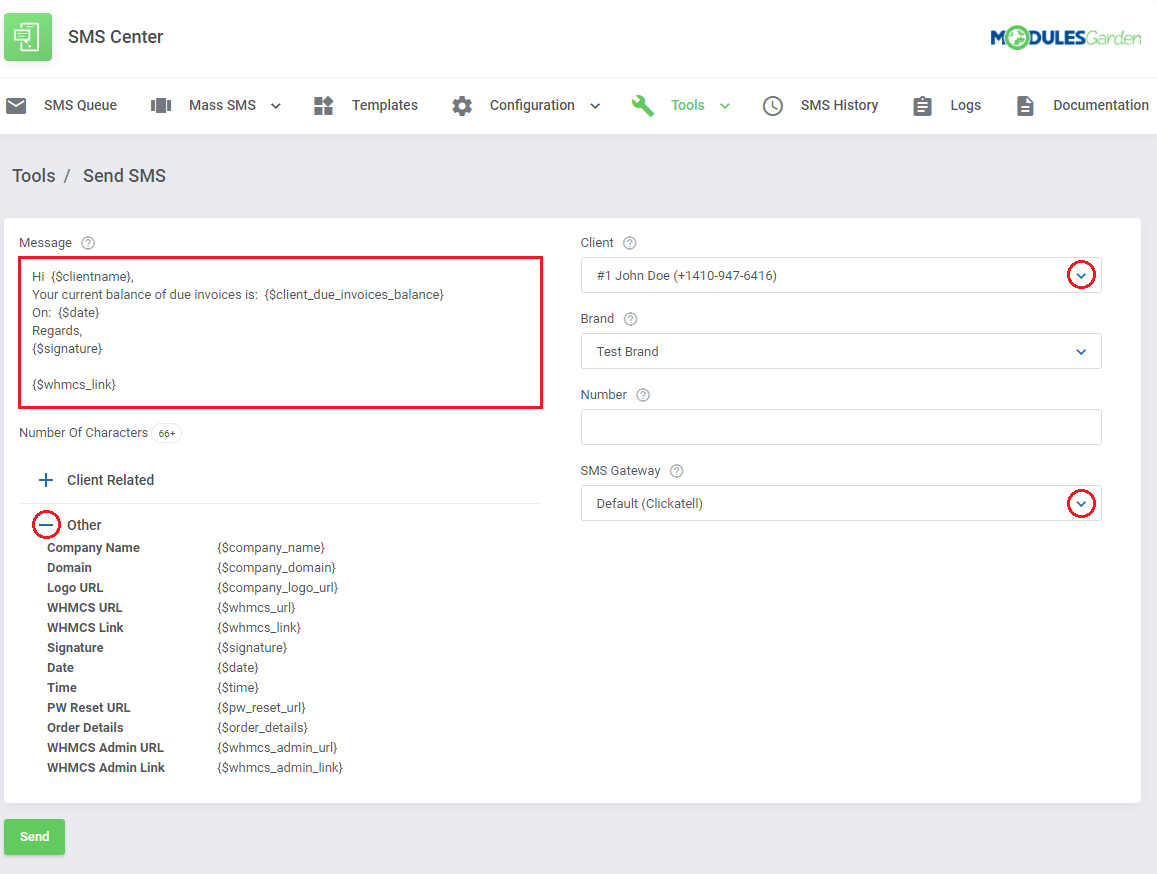

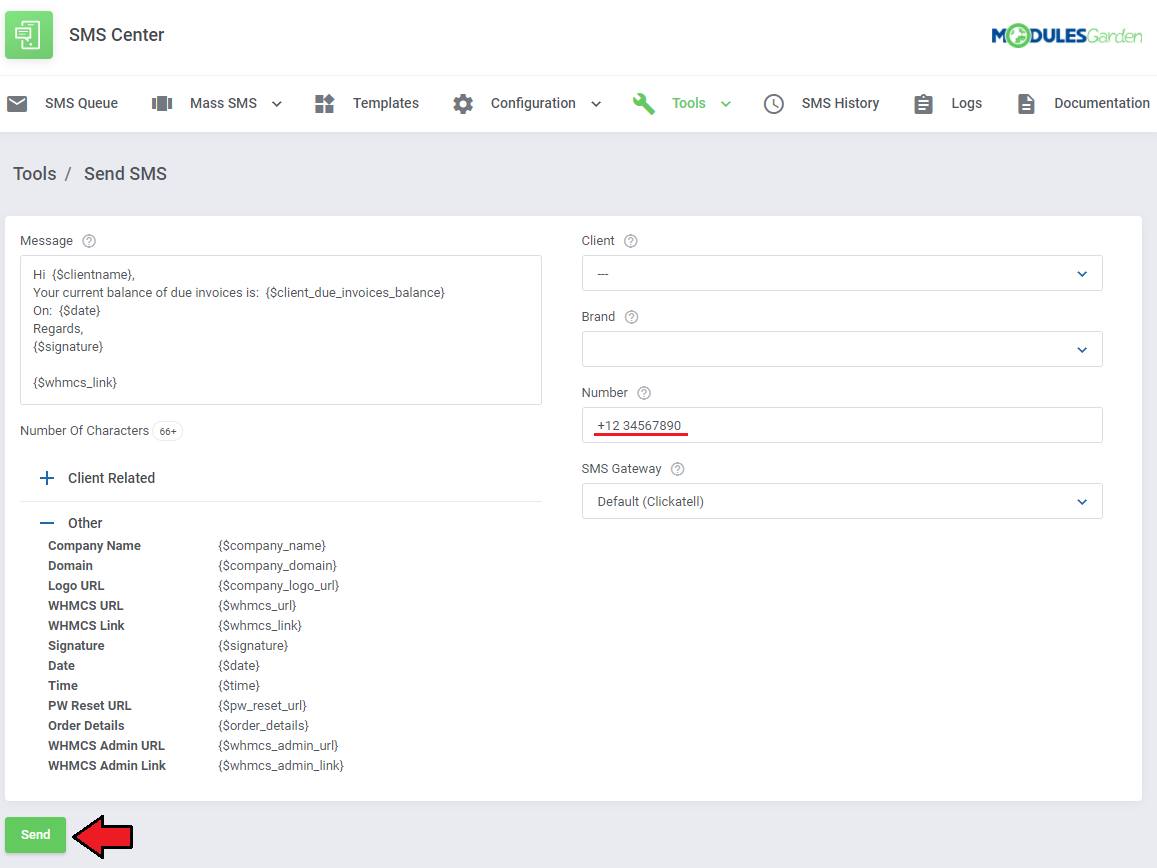

- Send Single SMS To Chosen Client Or Type In Any Number Manually

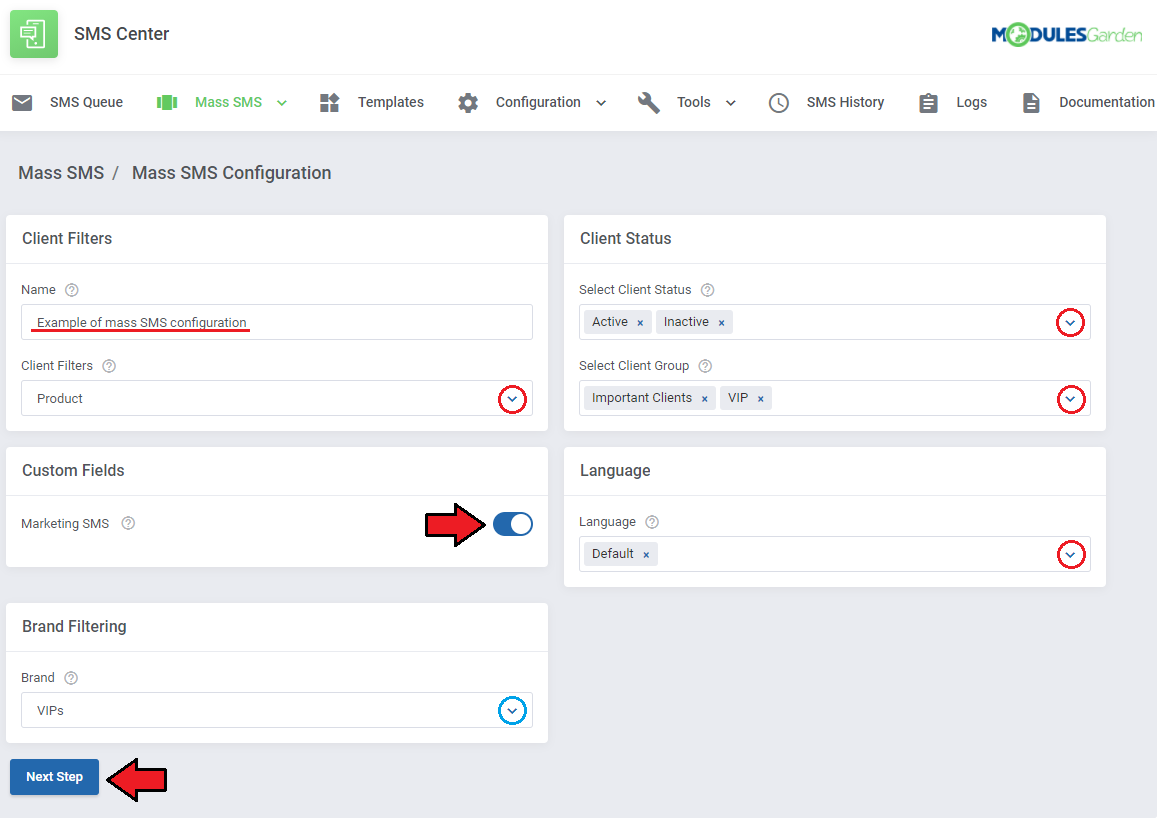

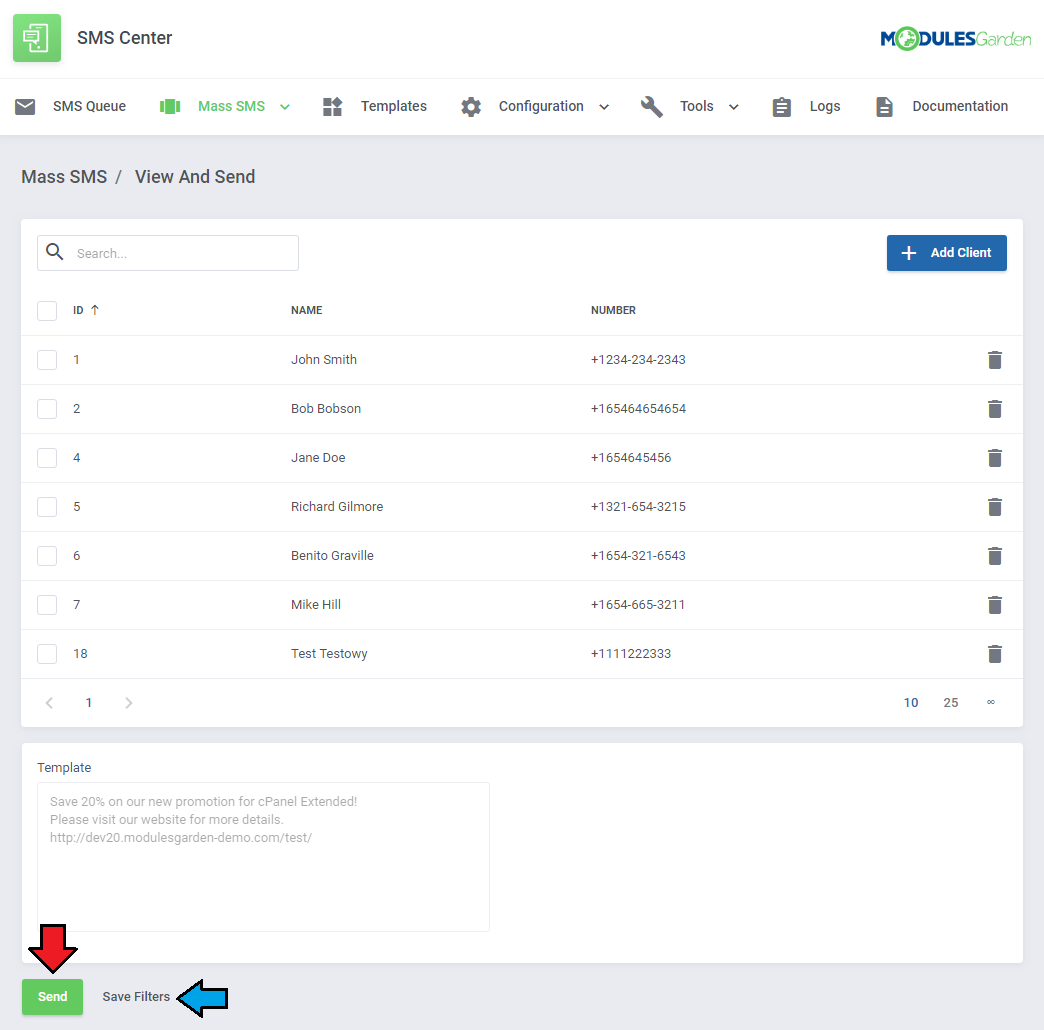

- Send Mass SMS Using Recipient Filtering
- Define SMS Template Counterpart Of Each Email Template

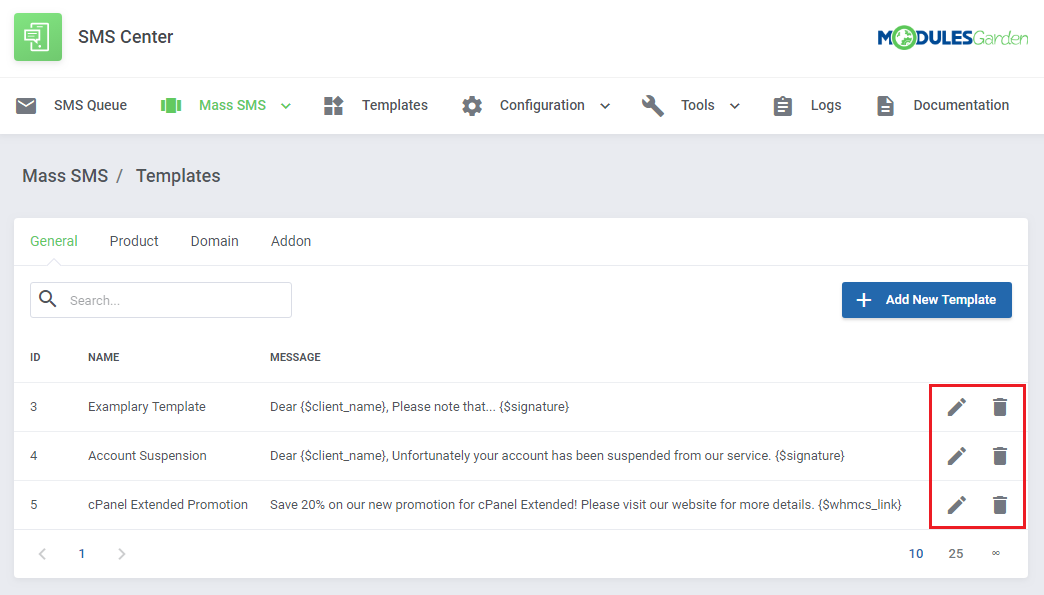

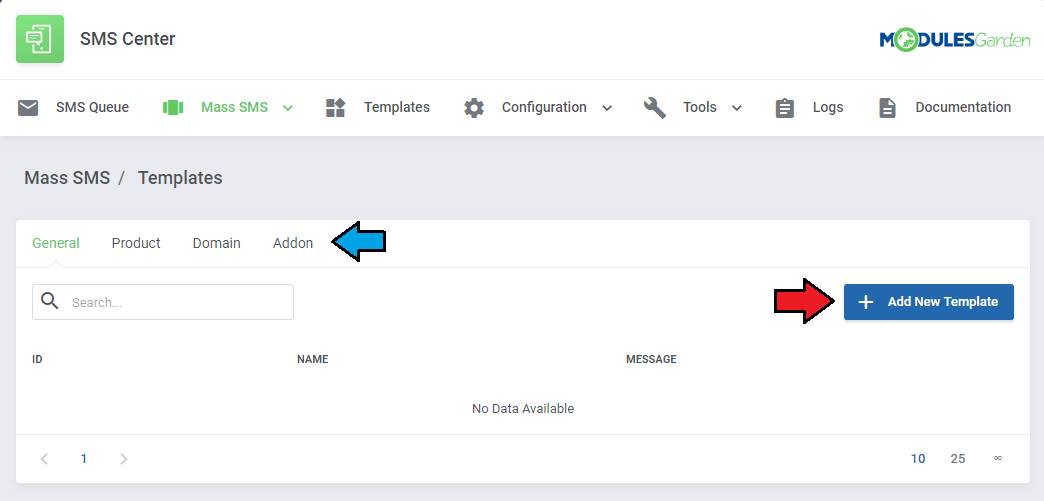

- Define Mass SMS Templates
- Estimate Message Length Using Character Counter

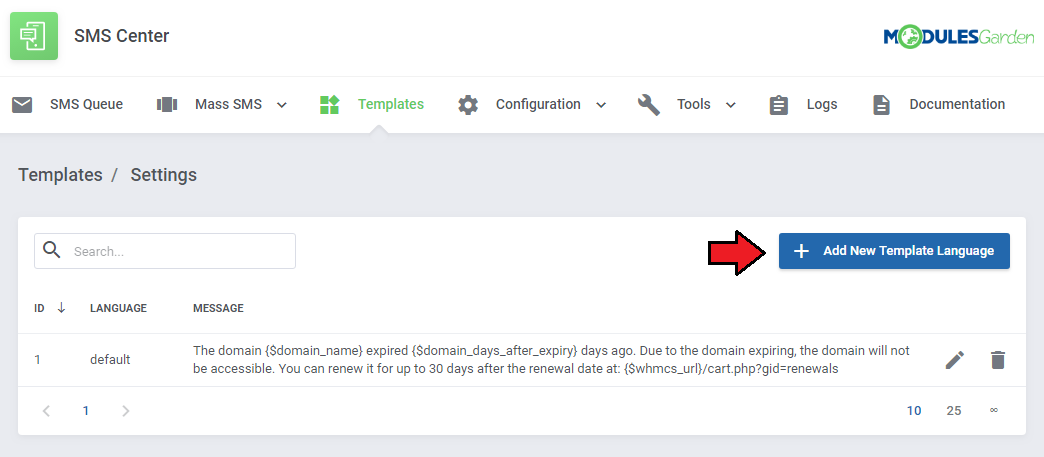

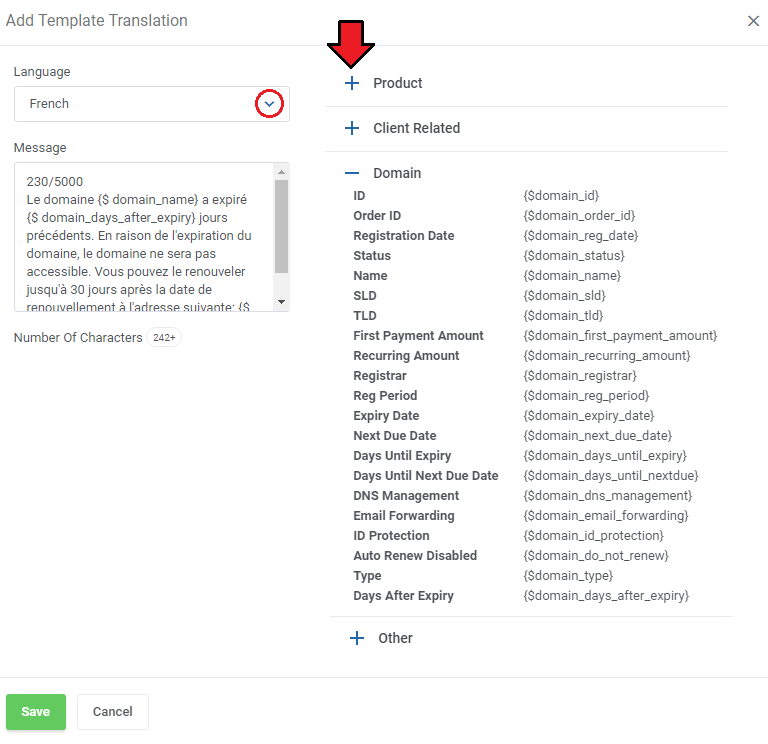

- Create Different Language Versions Of Each SMS Template
- Choose SMS Notifications To Be Received By Each Administrator
- Notify Chosen Administrators Via SMS When:
  - Specified Product Is Ordered
  - Specified Product Addon Is Ordered
  - Specified Domain Is Ordered
  - Ticket With Specified Priority Is Opened Or Flagged
  - Support Ticket Has Response
  - Support Ticket Department Reassigned
  - Specified Administrator Or Client Logs In
  - Product Automatic Setup Failed Or Succeeded
  - Service Is Suspended
  - Service Unsuspension Failed Or Succeeded
  - Domain Renewal Failed Or Succeeded
  - New Order Is Submitted
  - New Cancellation Request Is Submitted
- Enable/Disable SMS Notifications Per Administrator
- Enable/Disable SMS Gateways
- Check Connection With SMS Gateways

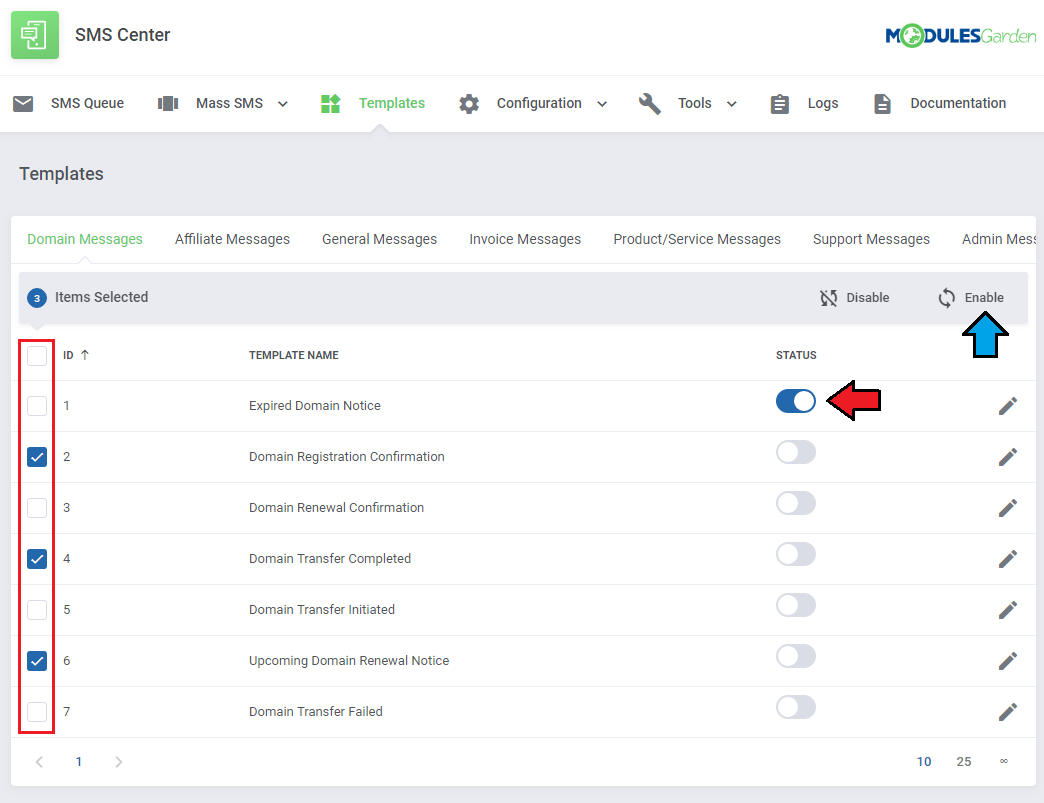

- Enable/Disable SMS Templates

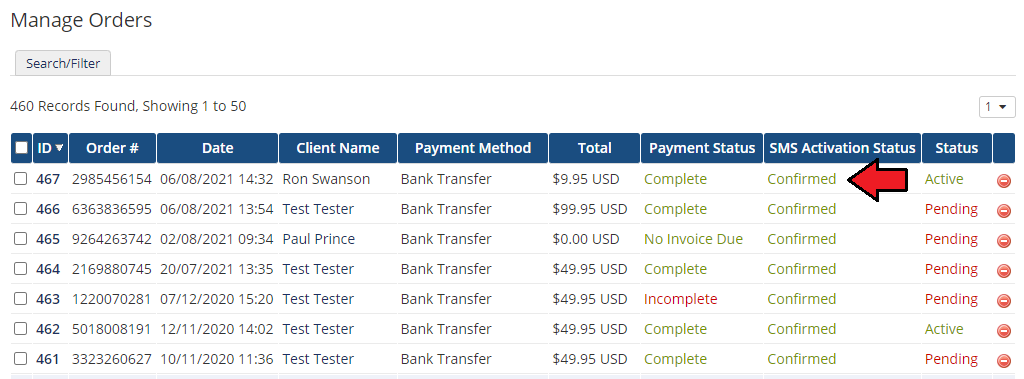

- View Verification Status Of Clients And Orders On WHMCS Lists

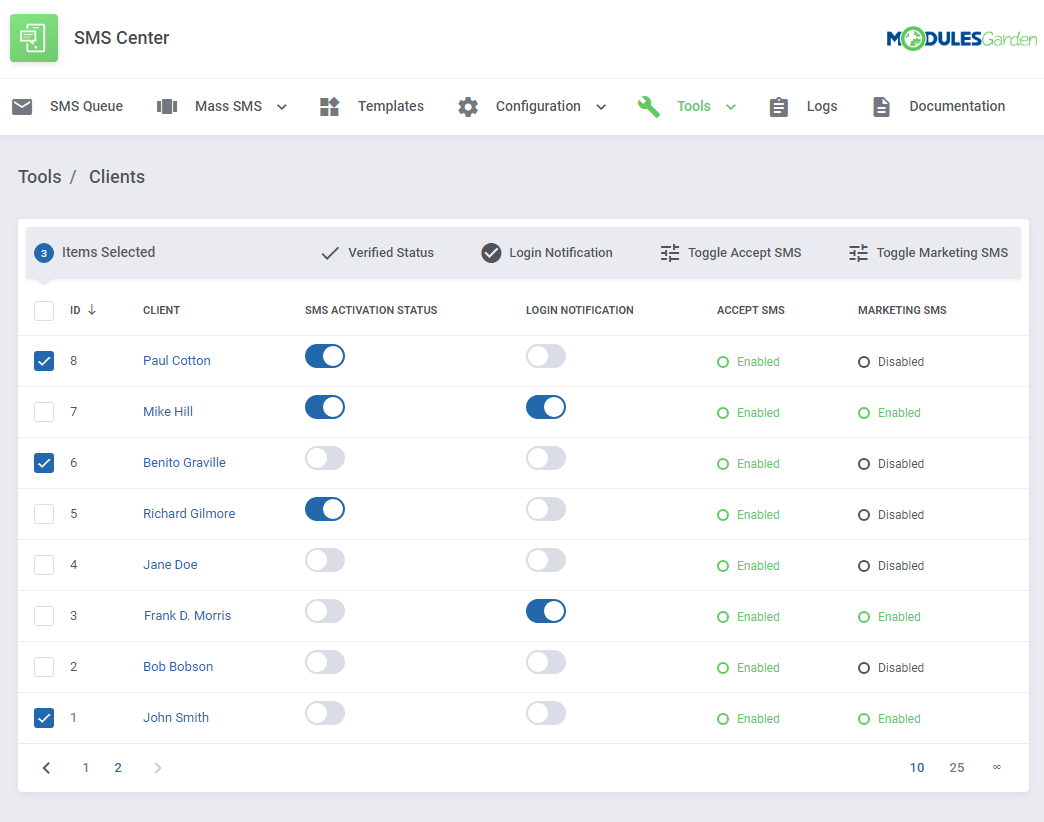

- Manage Client Verification Status, Accepting SMS And Marketing SMS Agreements From Addon
- Manually Verify Client Status On Client Summary Page

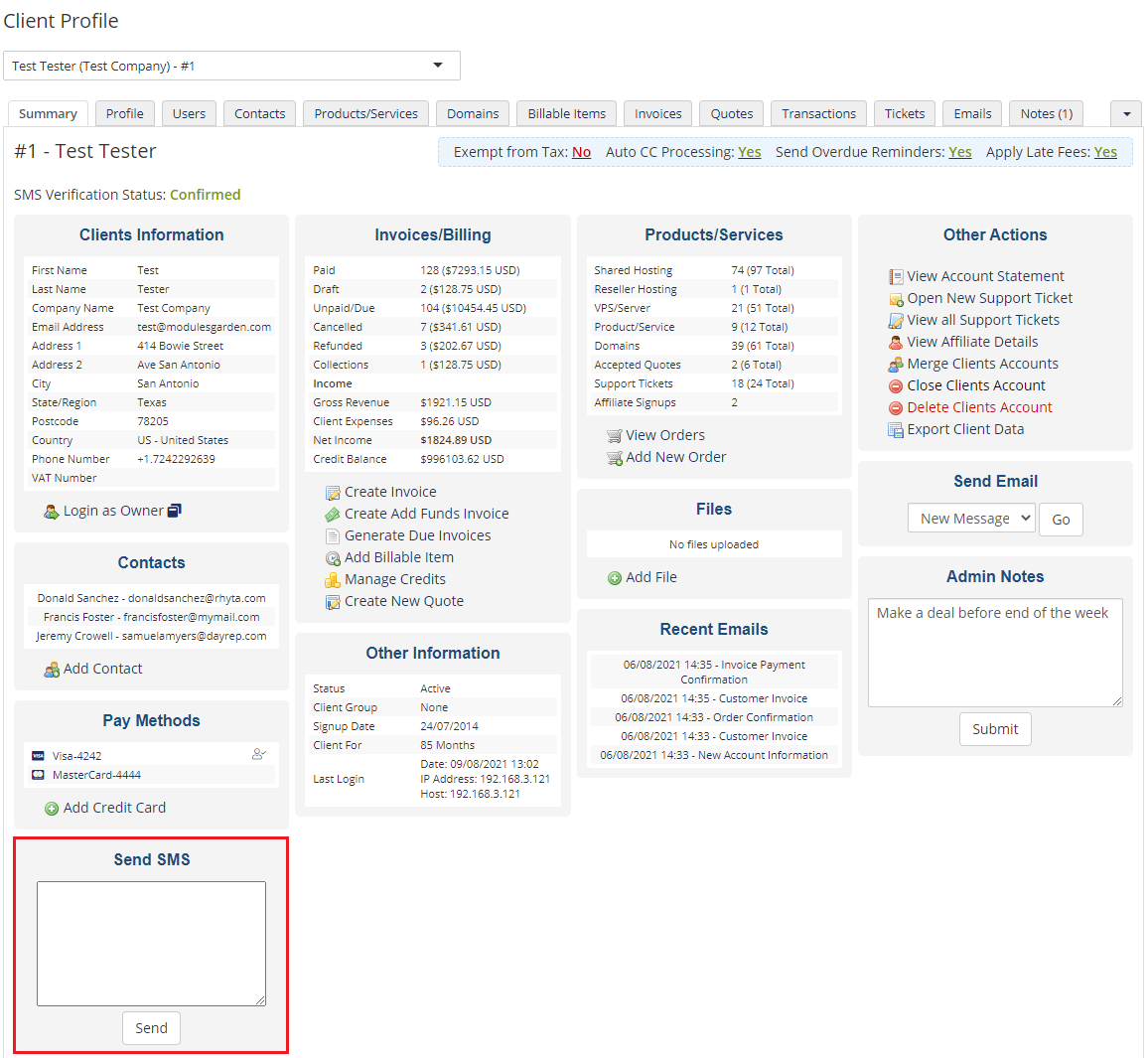

- Send SMS From Client Summary Page
- SMS Templates - Merge Fields Support
- Choose Client Custom Field To Be Used As Client Phone Number

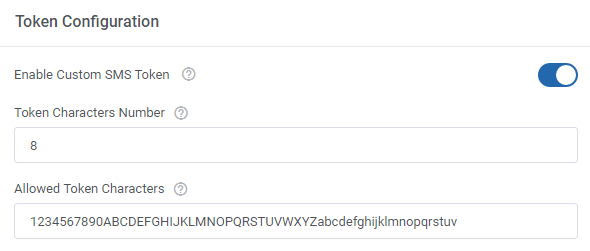

- Set Custom Token Length And Characters Set
- Adjust Format Number To International Automatically

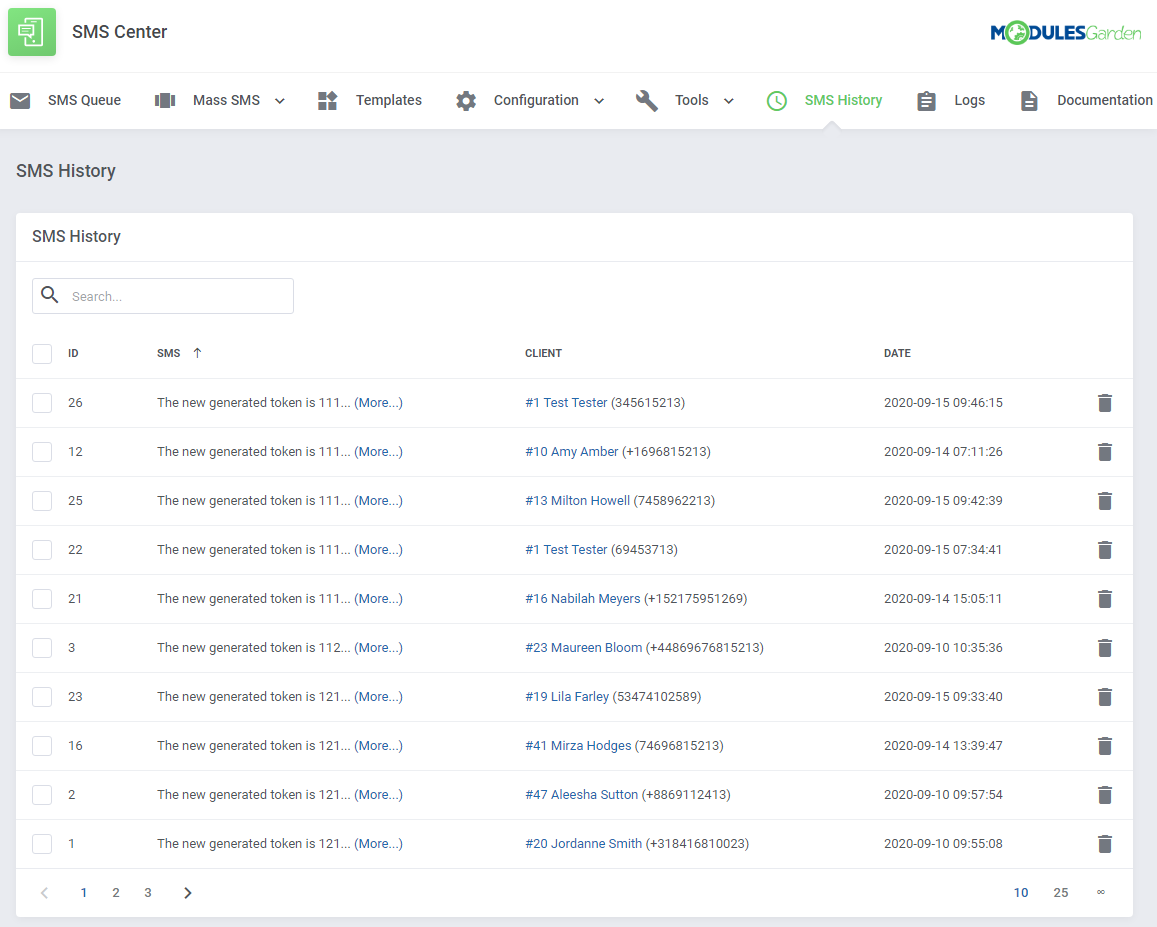

- View SMS History

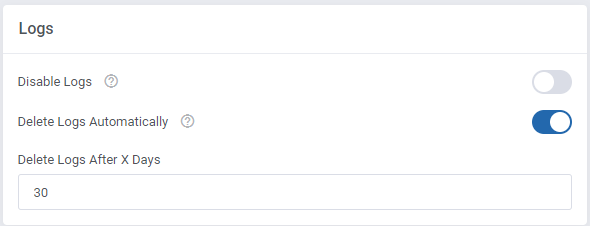

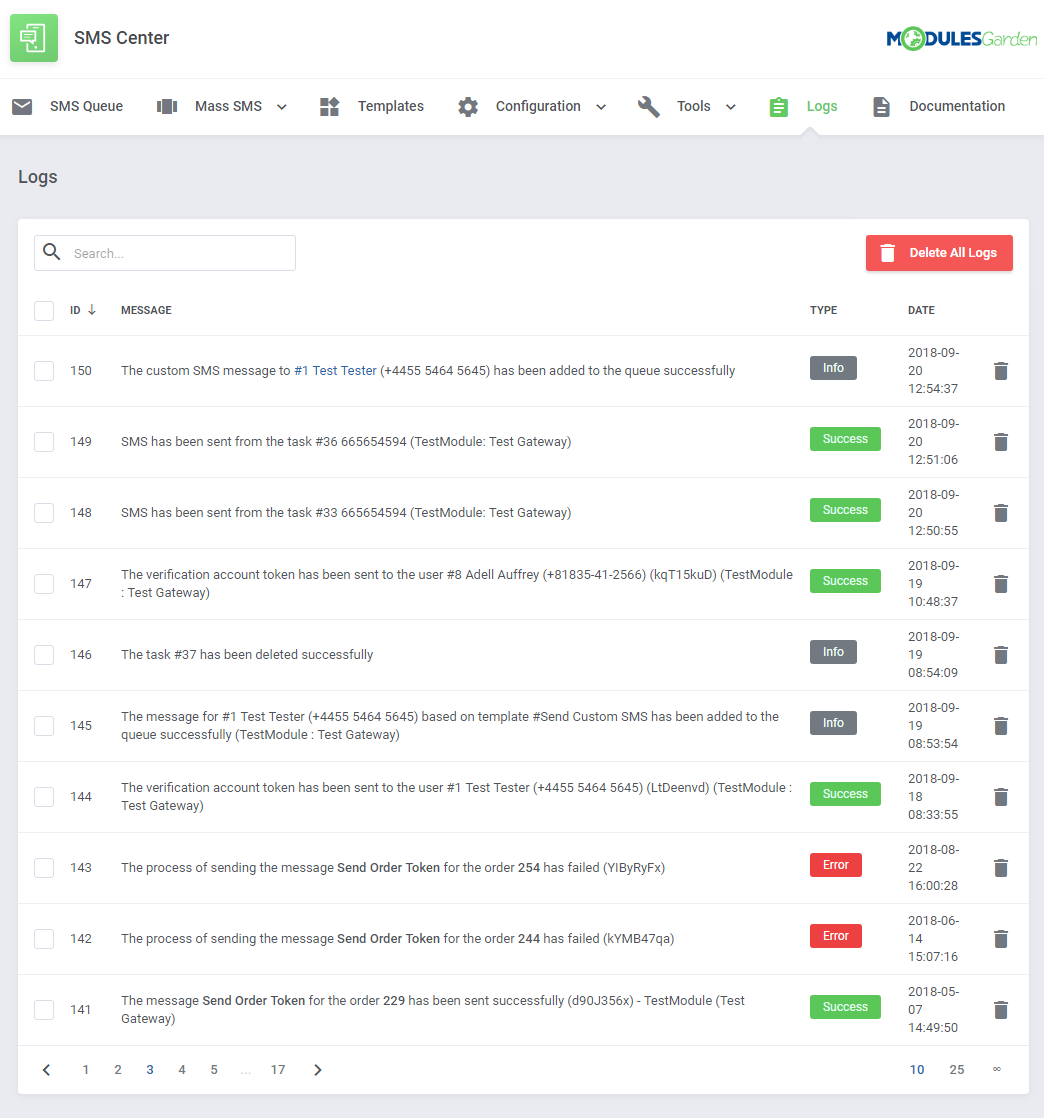

- View Logs
Client Area Features
- Choose To Opt-In/Out From Receiving SMS Messages

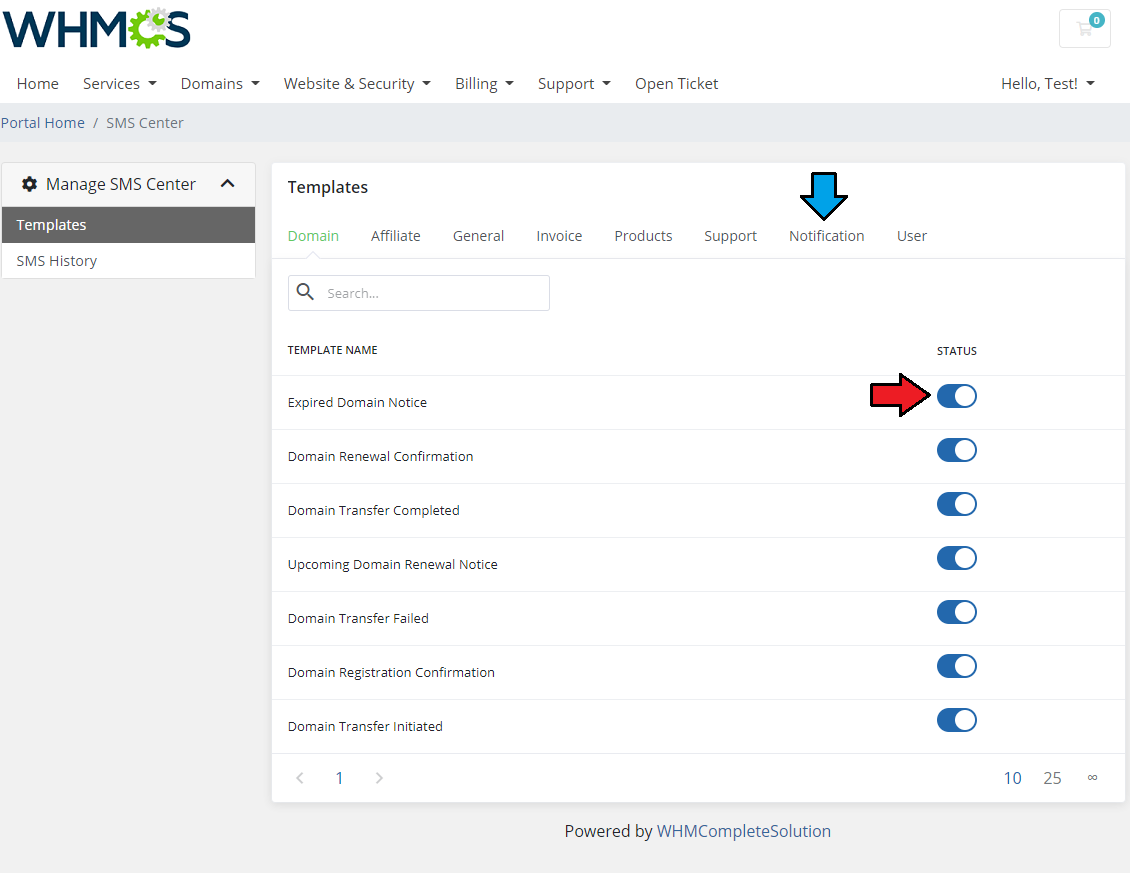

- Choose SMS Notifications To Receive
- View SMS History
- Request SMS Token To Be Resent
Security And Verification

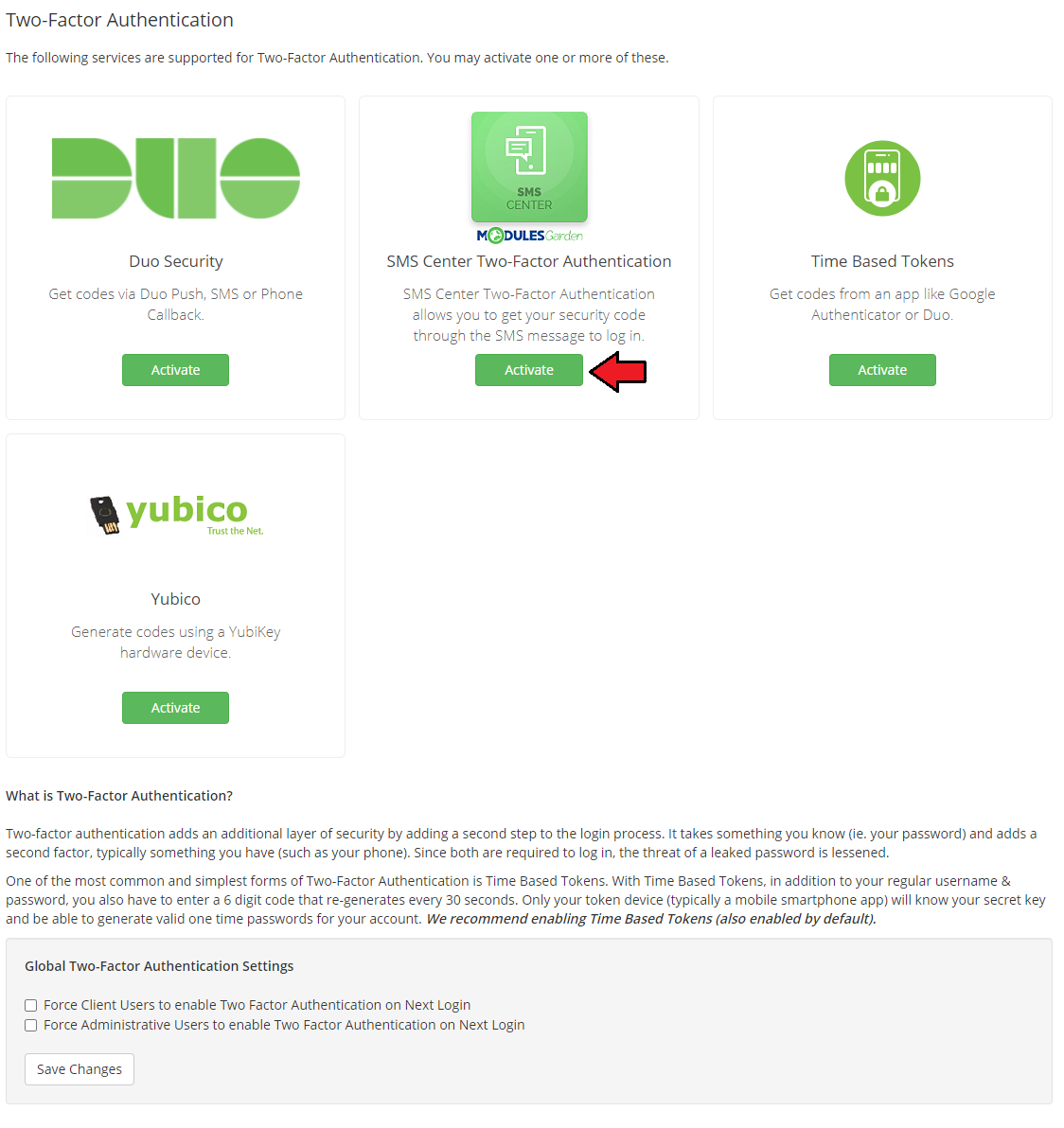

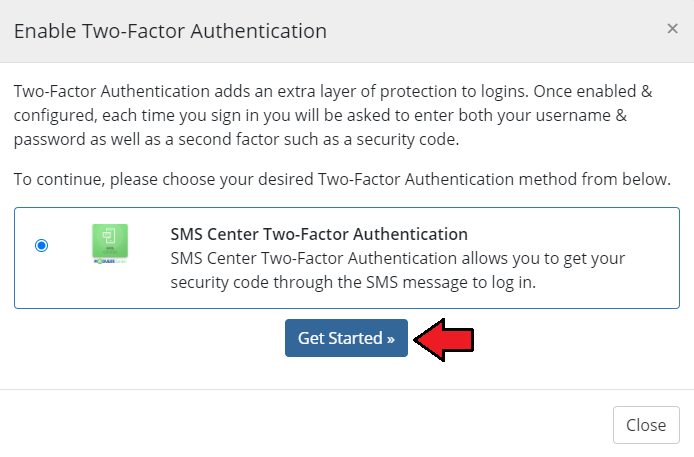

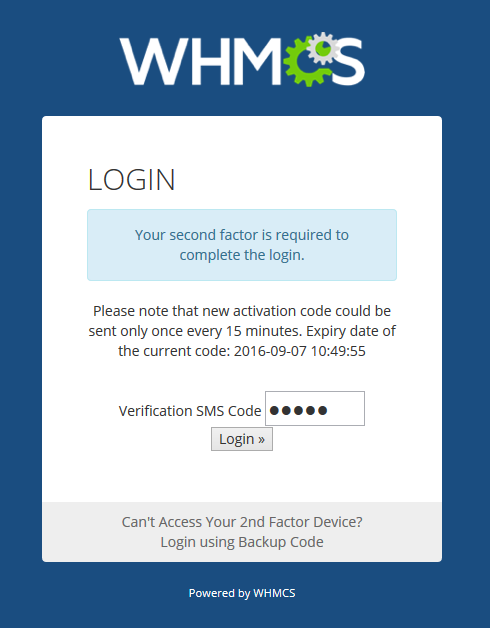

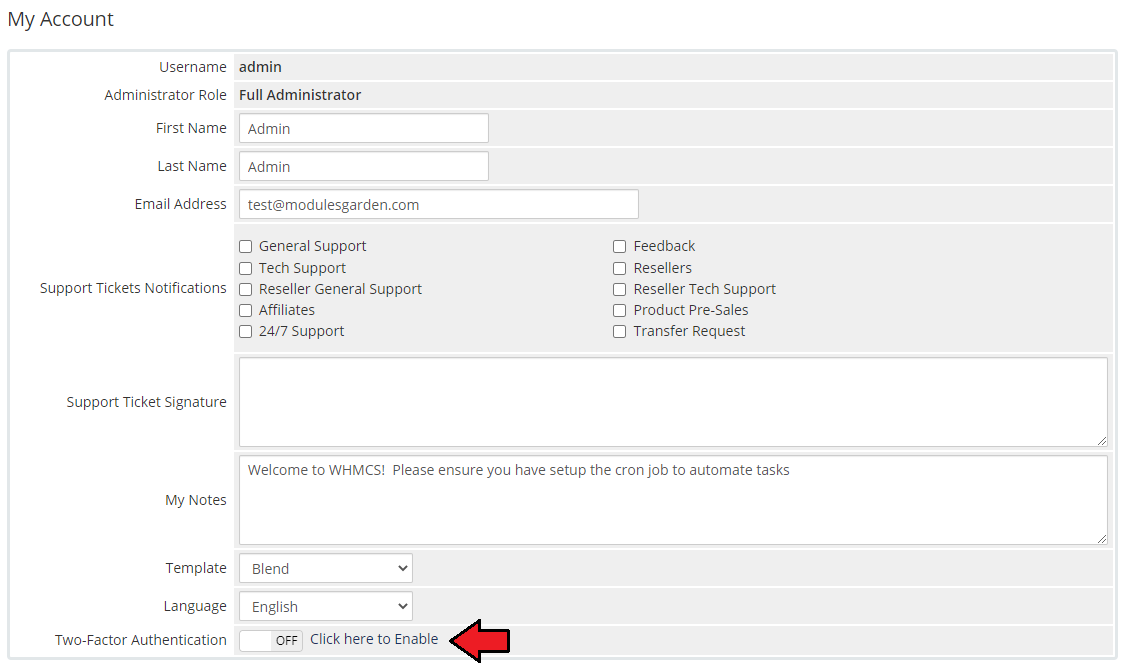

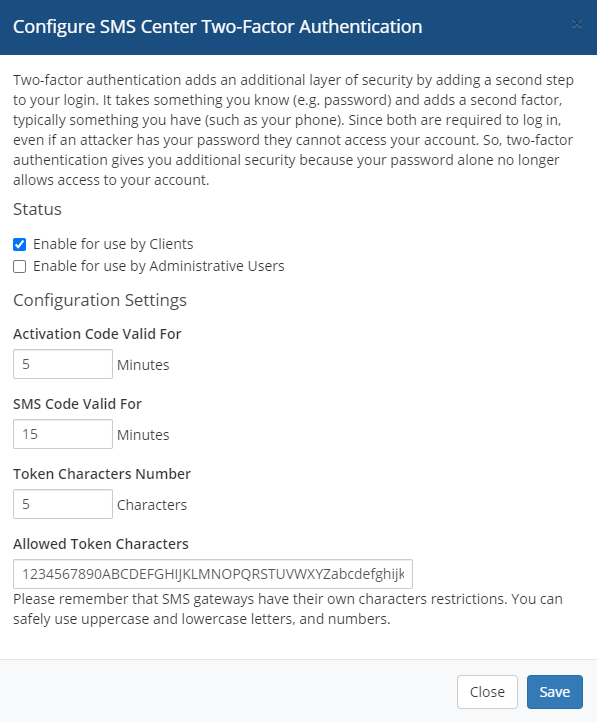

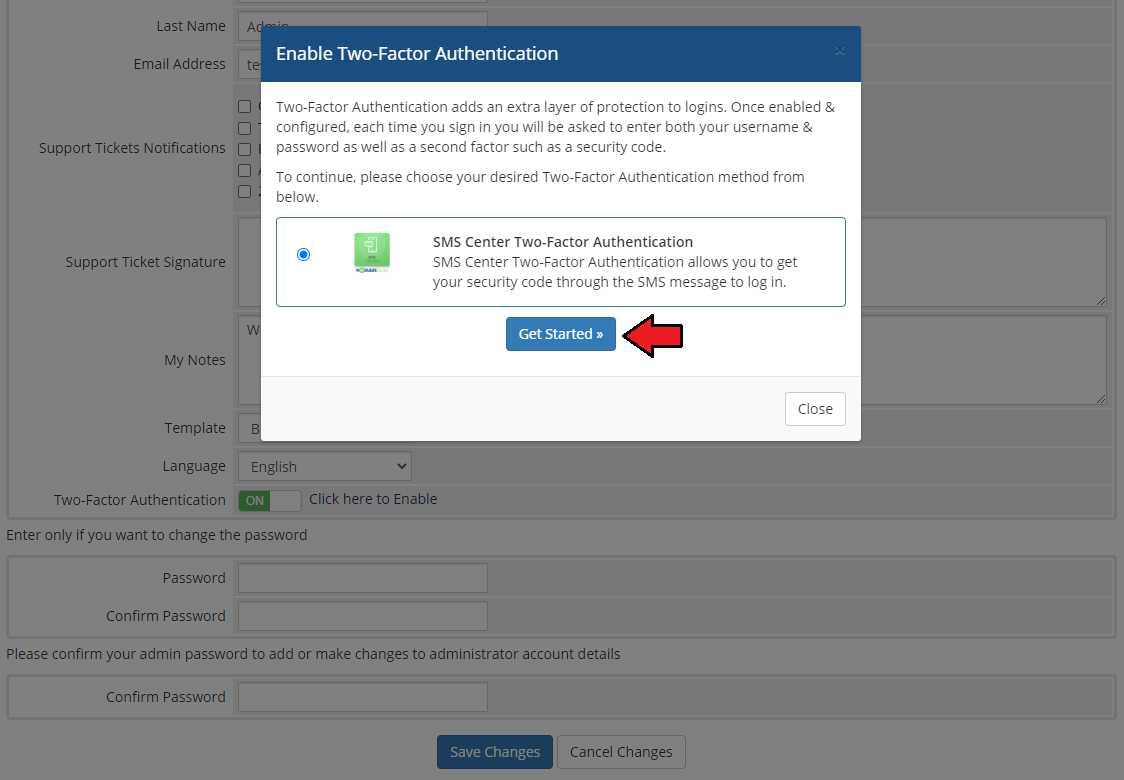

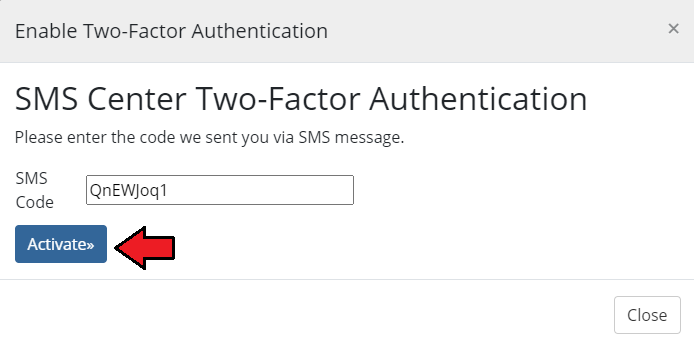

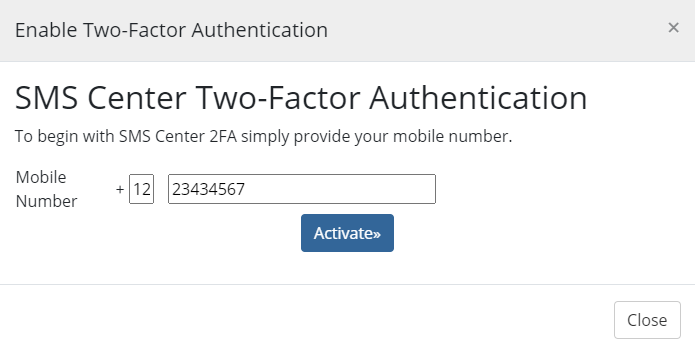

- Two-Factor Authentication Submodule - Use Second Layer Of Security:

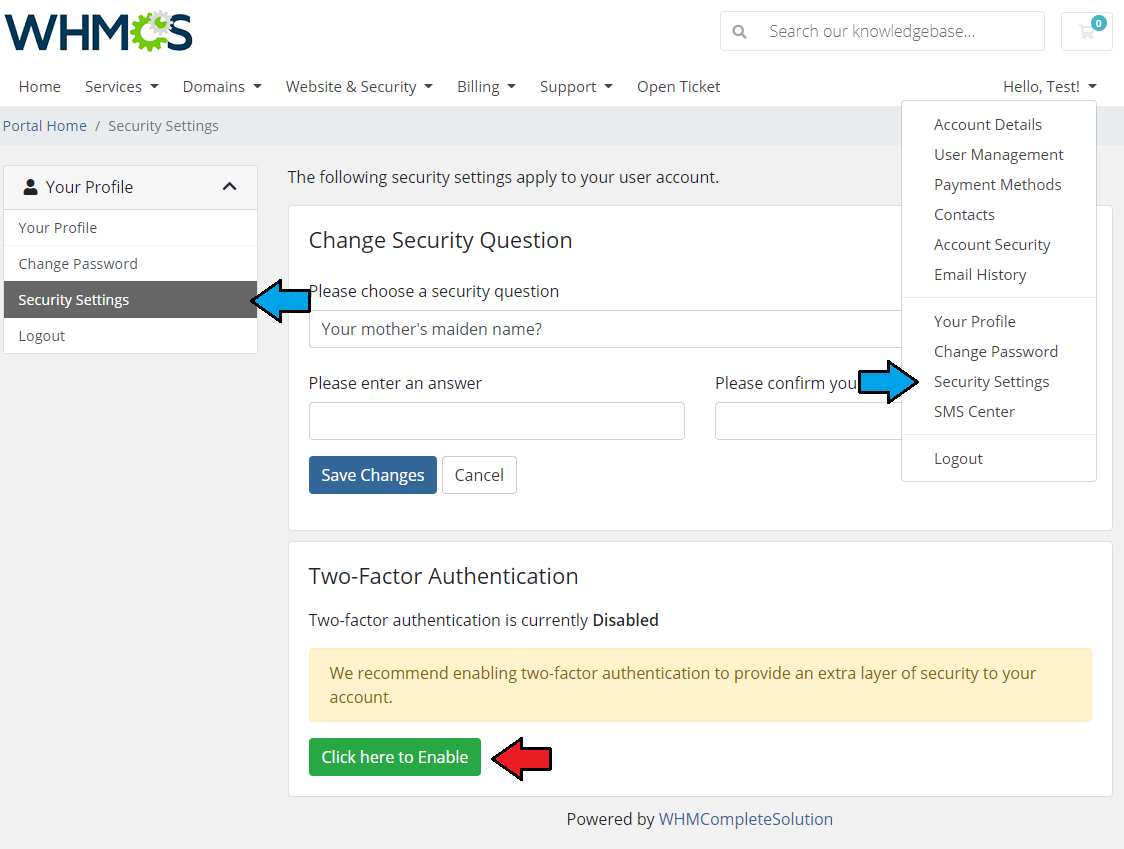

  - Client Area Login

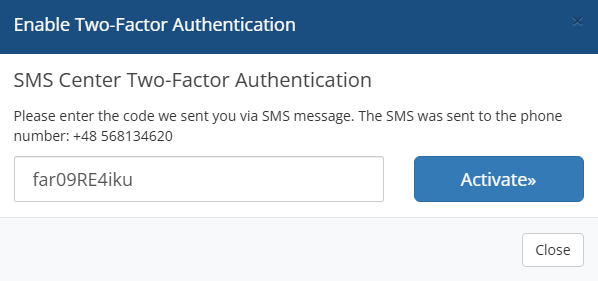

  - Admin Area Login
- Verify New Client Accounts With SMS Token
- Verify New Orders With SMS Token:
  - Before And/Or After Checkout
Mass SMS Recipient Filtering
- Client Account Filter:
  - Account Statuses
  - Account Custom Fields
  - Account Languages
  - Account Brand
- Addon Filter:
  - Purchased Addons
  - Purchased Addon Statuses

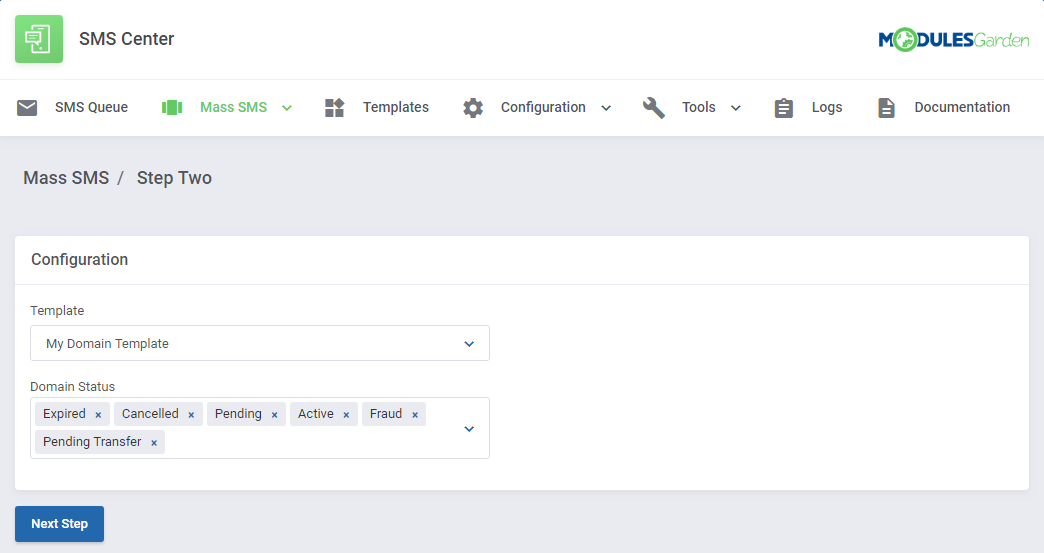

- Domain Filter:
  - Domain Statuses

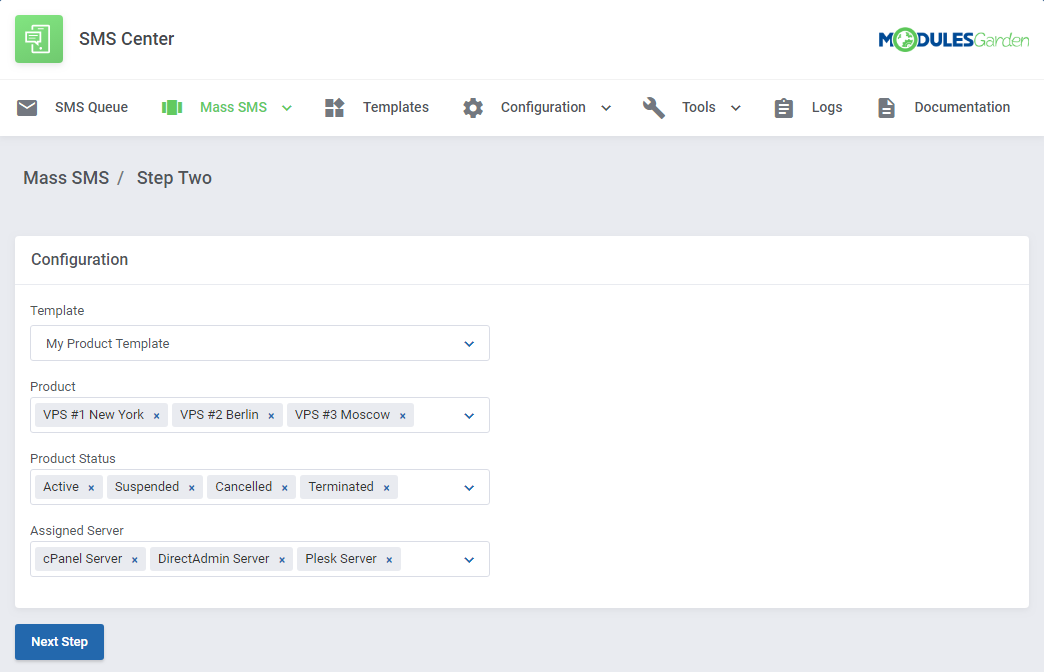

- Product Filter:
  - Purchased Products
  - Purchased Product Statuses
  - Purchased Product Servers
Supported SMS Gateways
- 360Messenger
- 4jawaly
- Africa's Talking
- Amazon SNS
- Aruba Network
- Asist BT
- Atomic SMS
- Bandwidth.com
- BearSMS
- Beem Africa
- BoxisSMS
- BudgetSMS
- BulkGate
- BulkSMS
- Burst SMS
- BYTEHAND
- Cheap Global SMS
- Clickatell
- ClickSend
- CommzGate
- ConnectSaudi
- Dialpad
- EBulkSMS
- eSMS.vn
- FastSMS
- FireText
- FoxxSMS
- Geez SMS
- Grameenphone
- Gretor SMS
- Hajana One
- HostPinnacle
- ICOMBD
- InfoBip
- iSMS
- IT Core
- Kavenega
- Massiva Movil
- MEDIA SAT
- MessageBird
- MiM SMS-eSMS
- Mobishastra
- Mocean SMS
- Msegat
- Nexmo
- OnnoRokom SMS
- OVH SMS
- Releans
- SemySMS
- SerwerSMS.pl
- Sinch
- sms77.io
- SMSAPI.com
- SMSAPI.pl
- SMS Bao
- SMS Broadcast
- SMSEagle
- SMS Gateway Me
- SMSGlobal
- SMS Maldives (SMSMV)
- SMSO.ro
- SMSPortal
- SMSpubli
- smss.co.il
- Sozuri
- Telenor
- Telnyx
- TextAnywhere
- Textlocal
- Textplode
- TNZ
- TraiTel
- Trio Mobile
- TurboSMS
- Twilio
- Unifonic
- Unitel
- VasPro
- VoIP.ms
- Voodoo SMS
- WABuzz
- WebSMS.lk
- WhatsLoop
- WinSMS
- Yamamah
- Yunpian
- Zenziva
- Zettatel
- Missing your favorite SMS gateway? We will integrate it for free! (opens new window)
General Info
- Meets GDPR Requirements
- Module API - Integrate Other SMS Gateways
- Integrated With Marketing Triggers Automation For WHMCS (opens new window) - Send Customizable SMS Messages Triggered By Various WHMCS Events
- Integrated With Multibrand For WHMCS (opens new window) - Send Personalized SMS Messages Based On Clients Brands
- Fully Integrated With Lagom WHMCS Client Theme (opens new window)
- Multi-Language Support
- Supports PHP 8.3 Back To PHP 8.2
- Supports WHMCS Themes "Six", "Twenty-One" And "Nexus"
- Supports WHMCS V9.X Back To WHMCS V8.10
- Requires ionCube Loader V14 Or Later
- Easy Module Upgrade (opens new window) To Open Source Version (opens new window)

# Installation

This tutorial will show you how to successfully install and configure SMS Center For WHMCS. (opens new window)

We will guide you step by step through the whole installation and configuration process.
Note: If you are still using any versions of SMS Center For WHMCS prior to v3.x, read about it here (opens new window).

# Installation

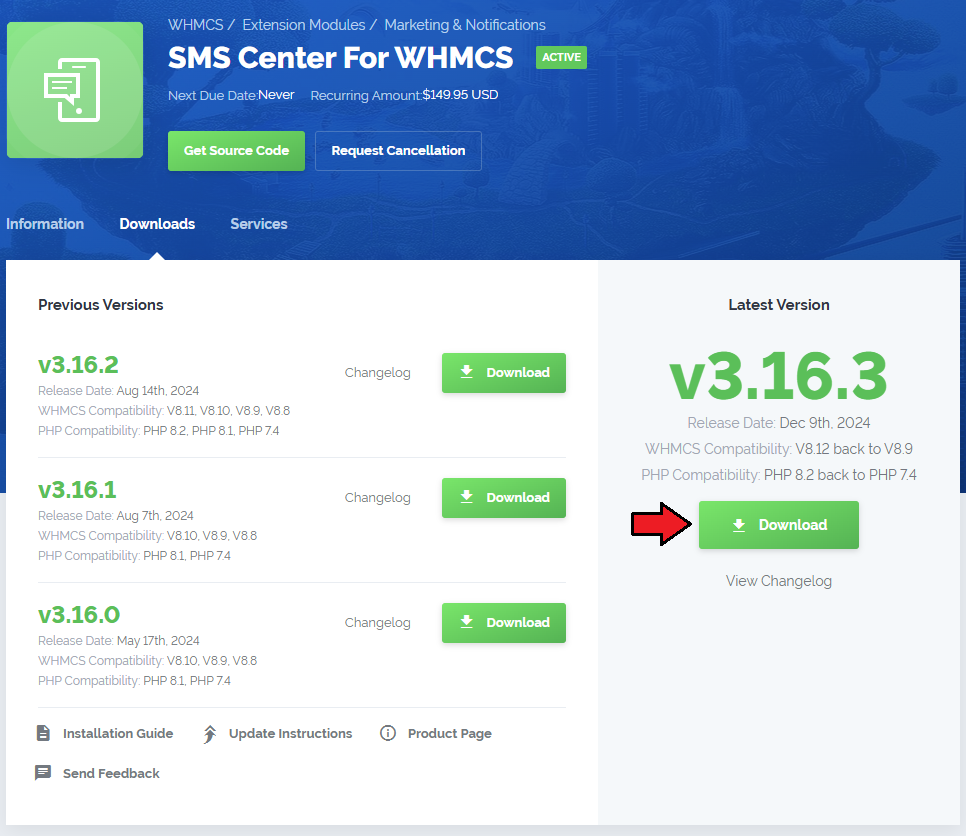

Log in to our client area and download the module.

Extract the package and upload its content into the main WHMCS directory.
The content of the package to upload should look like this.

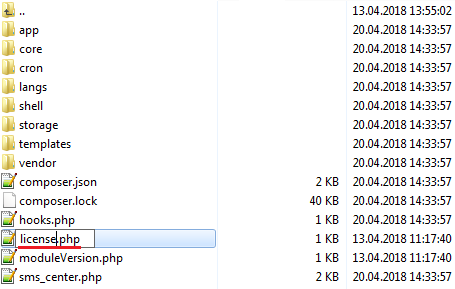

When you install SMS Center For WHMCS for the first time, you have to rename the 'license_RENAME.php' file.
The file is located in 'modules/addons/sms_center/license_RENAME.php'. Rename it from 'license_RENAME.php' to 'license.php'.

In order to configure your license key, you have to edit the previously renamed 'license.php' file.

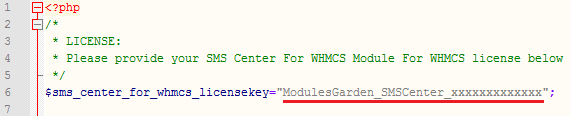

Enter your license key between the quotation marks as presented on the following screen. You can find your license key in our client area → 'My Products'.

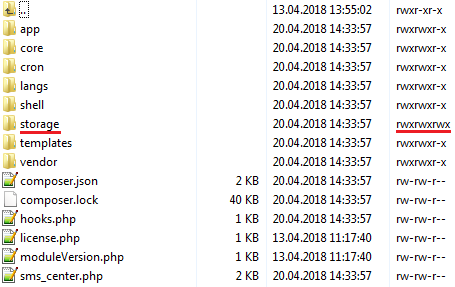

In the next step, set up the 'storage' folder as recursively writable.
This folder is available at 'yourWHMCS/modules/addons/sms_center/'.

# Activate The Addon

Now, you have to activate the module in your WHMCS system.

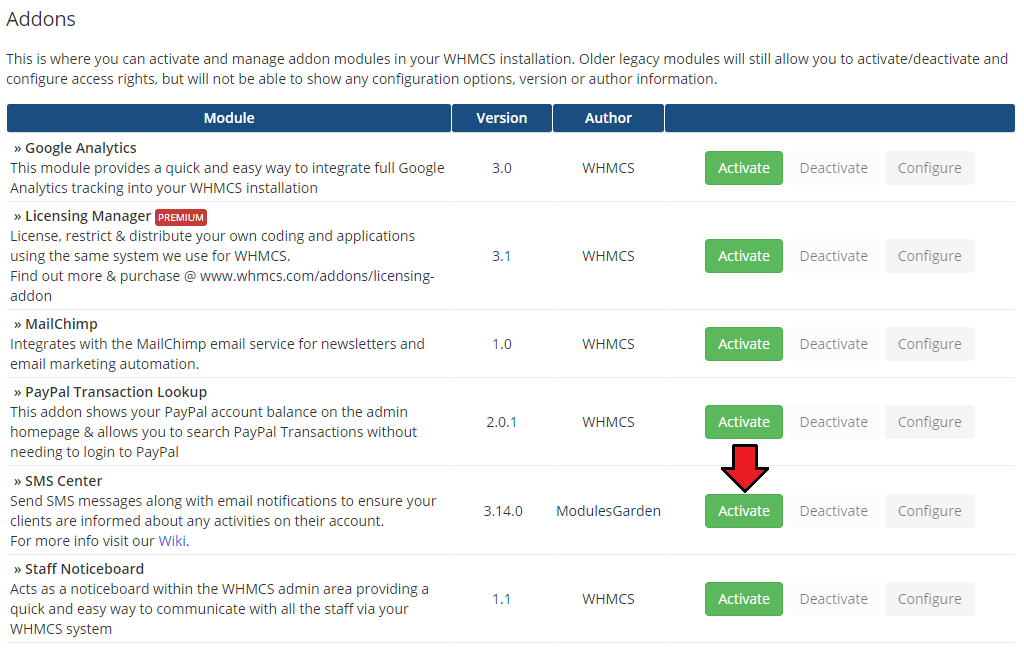

Log in to your WHMCS admin area and proceed to 'Setup' → 'Addon Modules'.
Afterward, find 'SMS Center' and press the 'Activate' button.

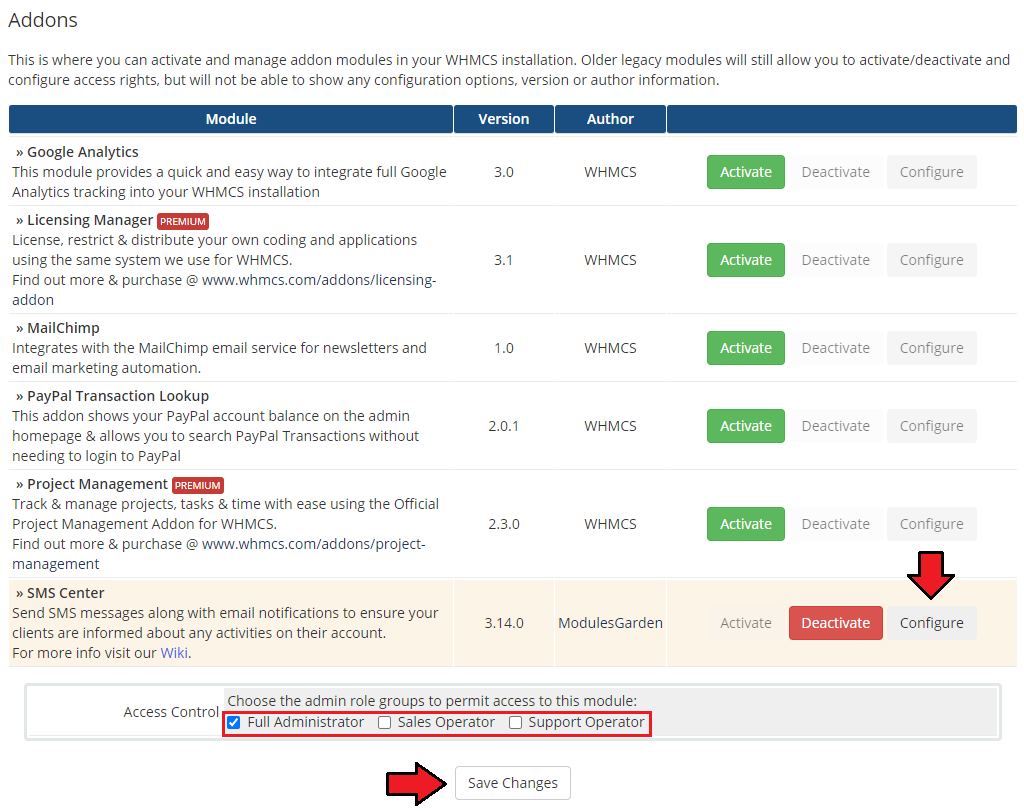

In the next step, you need to permit access to this module.
To do so, click on the 'Configure' button and select the admin roles that should have access to the module.

Finally, set up the cron command line provided below and define its frequency (10 minute interval is suggested).

php -q /yourWHMCS/modules/addons/sms_center/cron/cron.php SmsTask

This will allow the module to send text messages.
Important: Make sure that the 'exec' function is not blocked in your PHP configuration.
Note: Once the cron is executed, it operates continuously.
If you stop the cron processes manually, please also delete the entire content of the '/yourWHMCS/modules/addons/sms_center/storage/crons/' folder or execute the below command:

rm -r /yourWHMCS/modules/addons/sms_center/storage/crons/*

This will allow you to run the cron process again next time. Do not forget to replace 'yourWHMCS' with your WHMCS root location.

Congratulations, you have just successfully installed SMS Center For WHMCS!

# Configuration and Management

SMS Center For WHMCS is a module which allows you to send predefined text messages to your clients the same way emails are sent.

# Configuration

Under 'Configuration' tab you will find 'General', 'SMS Gateways', 'Administrators' and 'Rules' sections. Configure each of them to allow full usage of SMS Center For WHMCS module.
Press the first one 'SMS Gateways' to configure and check connection with SMS gateways.

# SMS Gateways Configuration

# Simple Gateway Configuration

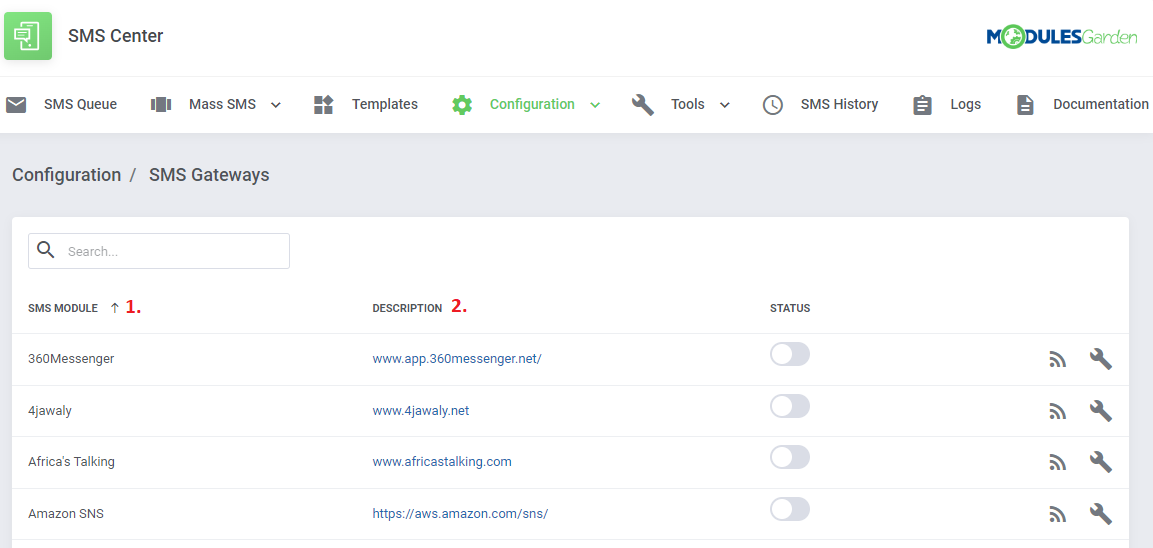

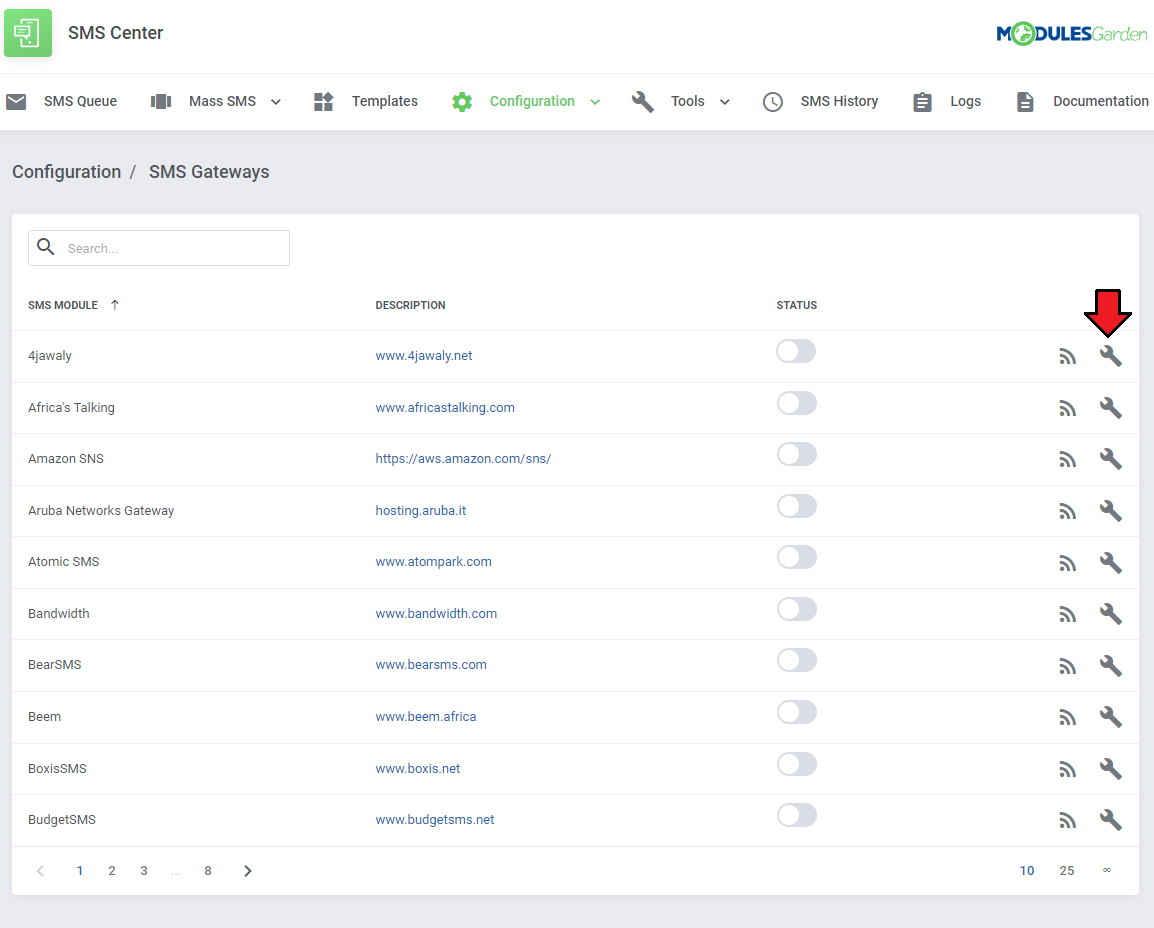

Here you will find all possible gateways that can be used in our module.
Press 'Simple Configuration' next to a gateway you wish to use.

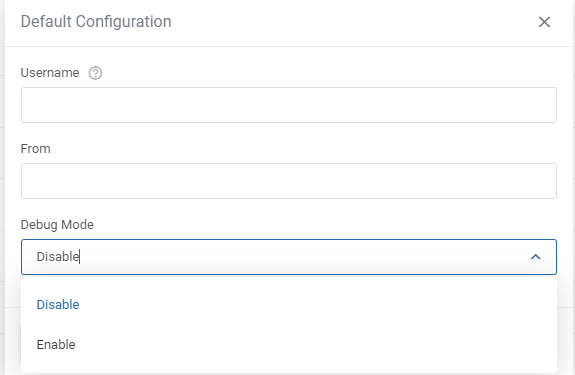

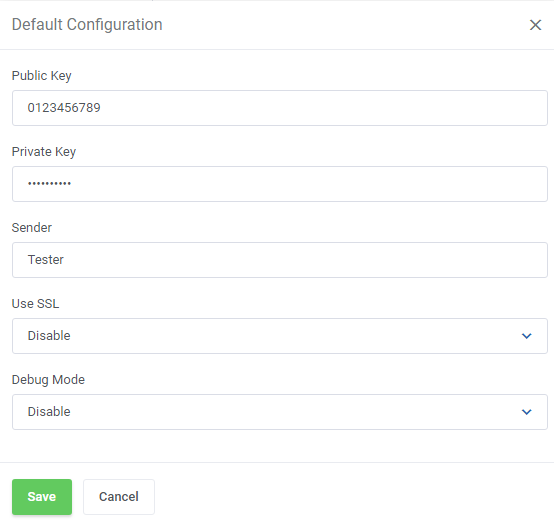

Configuration of each gateway may vary depending on its requirements.
Apart from connection details, you may here also enable debug mode to log API requests and responses.

You can check whether configuration is correct through pressing 'Check Connection'.

If connection is successful, you can proceed further.

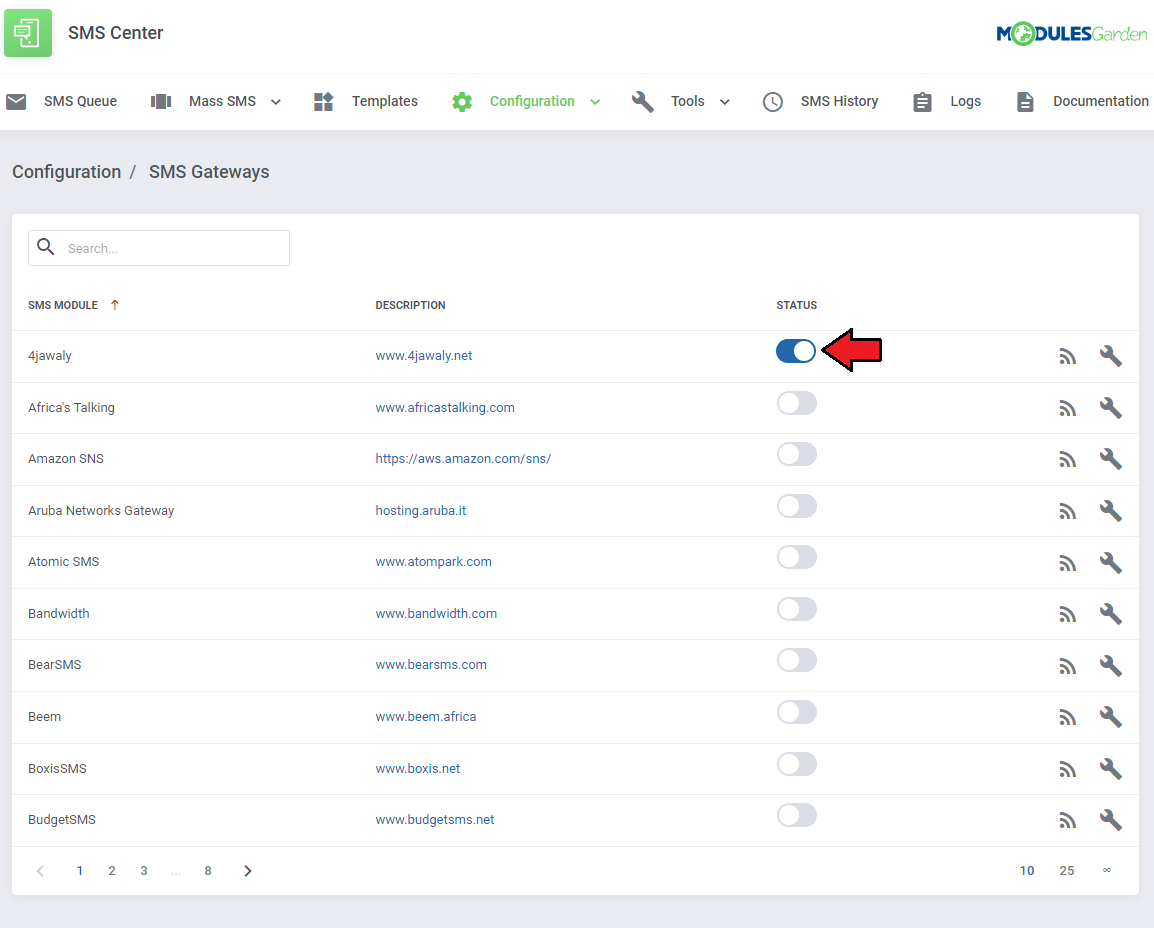

Press 'Enable' next to the gateway to activate it.

# Advanced Gateway Configuration

Advanced gateway configuration allows you to use multiple credentials for the chosen gateway type.
This feature can prove useful when you want to use a single gateway submodule with configurations from accounts dedicated to various countries.

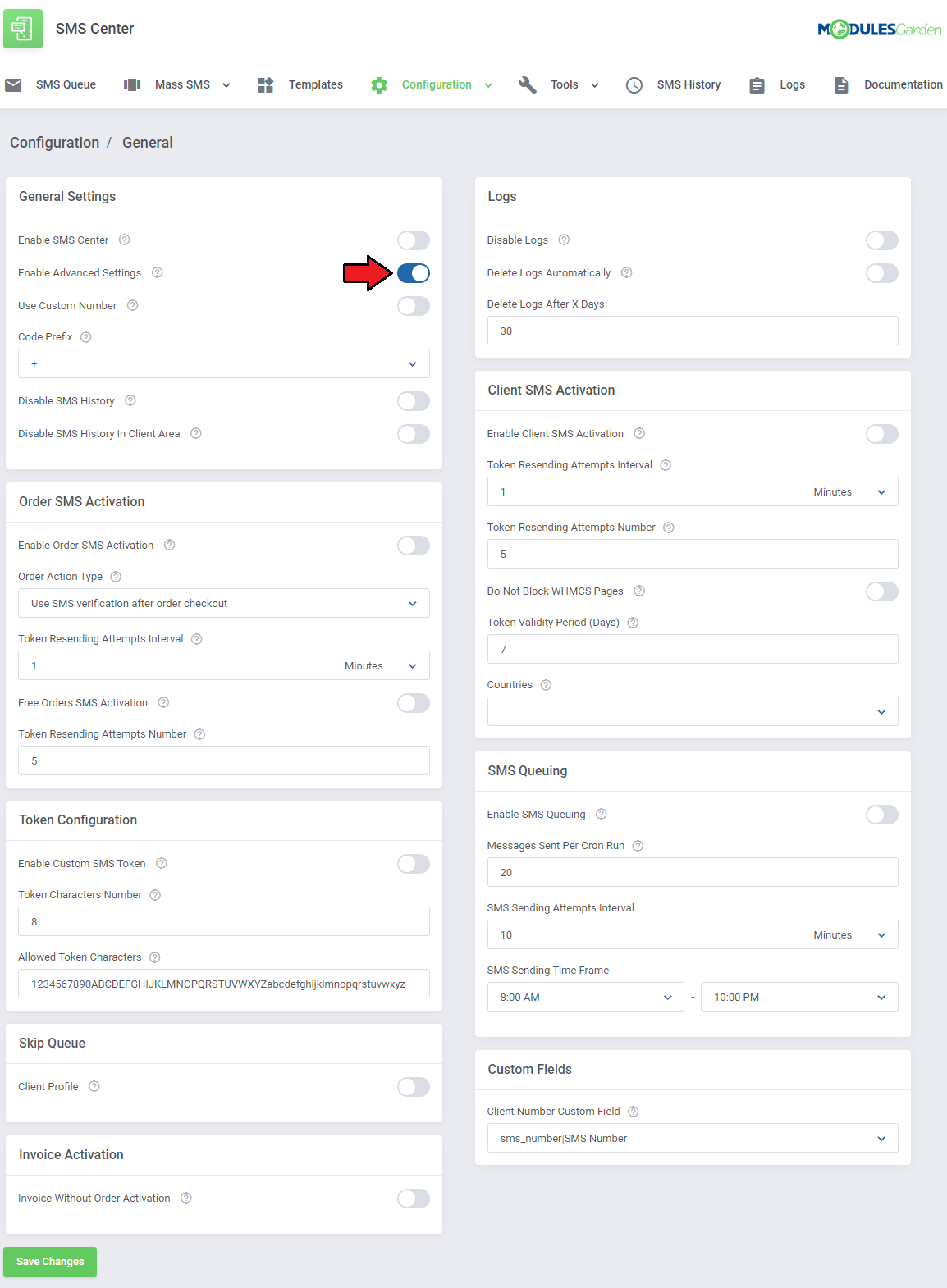

To start, go to 'Configuration' → 'General', enable the 'Advanced Settings' option, and save changes.

When you go back to the 'SMS Gateways' section, press the 'Advanced Configuration' button next to the chosen gateway and you will notice it has replaced the 'Simple Configuration'.
Now you will be redirected to a new section, where you can add multiple configurations for a chosen gateway.

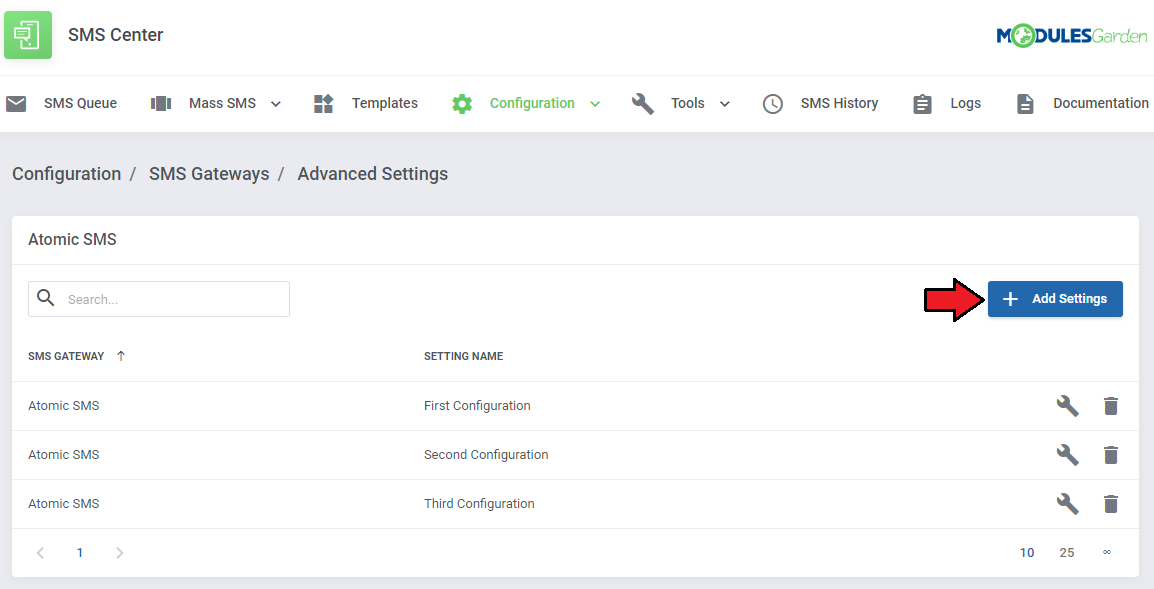

Simply, press the 'Add Settings' button to add a new configuration option.

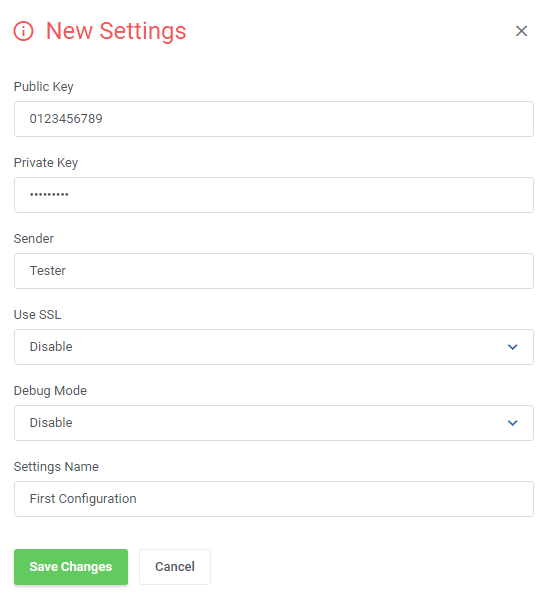

Next, add your gateway configuration in the same way as you would do during a simple configuration. Additionally, enter your 'Settings Name' to be able to distinguish this configuration from others afterward.
Note: You can have as many configurations as you want. You will determine which configuration will be used in which case later on, in the rules (opens new window) section.

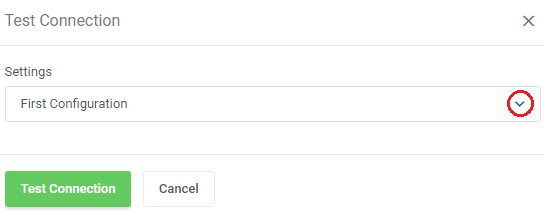

To check if your configurations have been saved properly, go back to the gateway list and press the 'Check Connection' button next to the gateway you had configured.
Then, in the newly opened window, you will be able to select one of your saved configurations and perform a connection test.

# Administrator Notifications

This section contains a list of all administrators.
Here you can choose who exactly will receive particular SMS notifications.
Follow the steps described below to configure staff notifications properly.

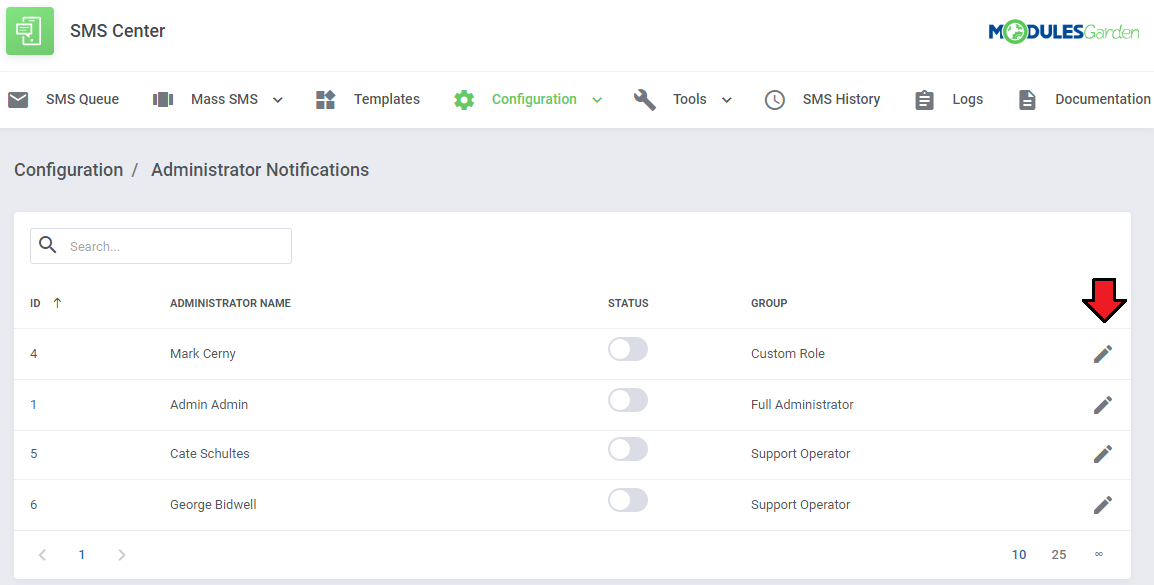

Find the 'Administrator Notifications' section under the 'Configuration' menu. Next, press 'Edit' next to the chosen administrator.

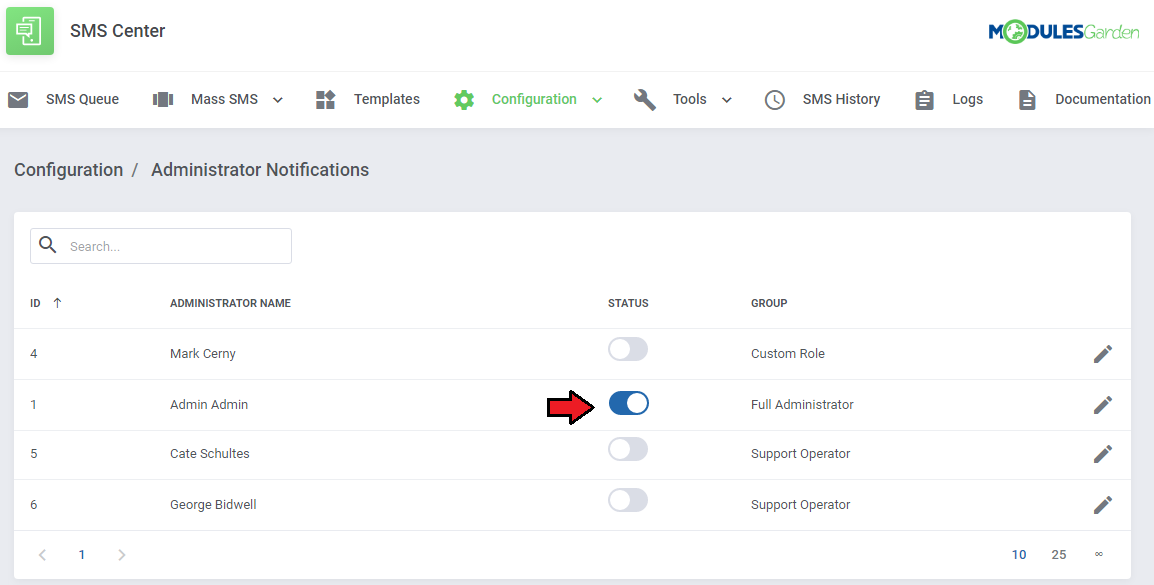

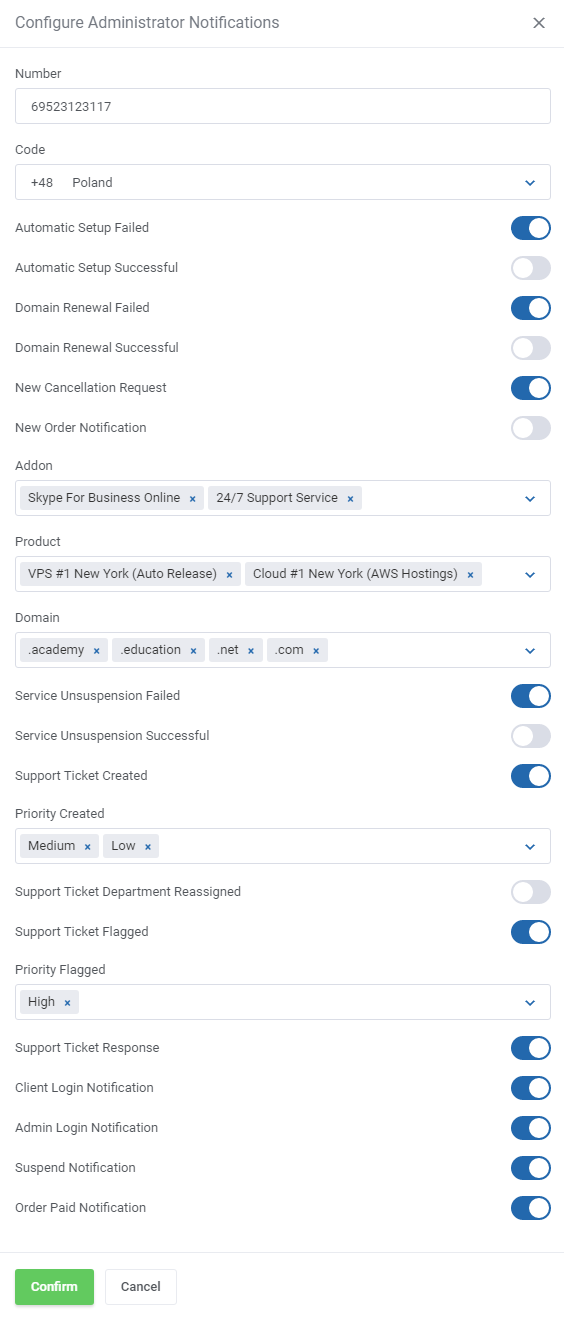

In order to enable SMS notifications for each administrator individually, firstly set configuration for every one of them.

Fill in the administrator's country code and phone number to which text messages with notifications will be sent.
Choose which of the available admin messages will be sent to this particular administrator.
Choose addons, products and domains which order will result in sending a notification to the specified administrator.
Select ticket priorities to send notifications to the administrator whenever a ticket with such priority is opened.
Decide if you want to receive clients login notifications (you can select these clients in the 'Tools' ' → 'Clients' section).
Confirm changes.

Finally, enable all remaining notifications you wish to receive.
Repeat these steps for every administrator if you wish to receive individual admin notifications.

# Rules

The rules allow you to use different gateways (or their configurations) depending on the customer's country.

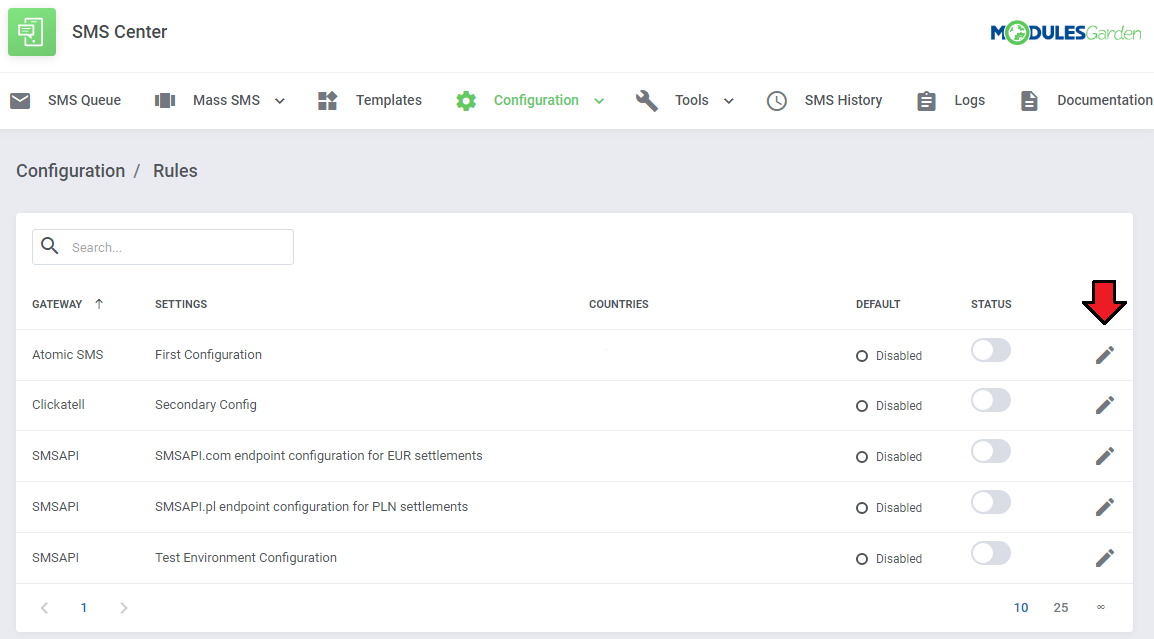

You can find them under the 'Configuration' → 'Rules' menu. To add a rule, press 'Edit' next to the chosen gateway configuration.
Note: Make sure that you have already your SMS gateways (opens new window) configured and enabled. Otherwise, the rules will not show up.

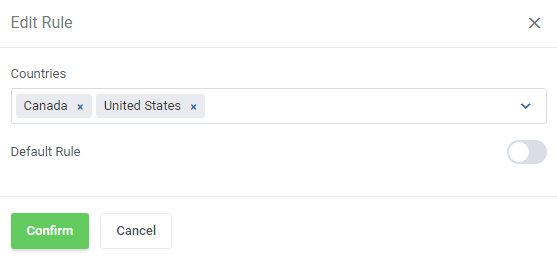

Now, select countries for which a particular gateway configuration will be applied. The selected country may only be assigned to one rule.
You can also mark the gateway as default, which means that it will also be used if no other rule concerning the customer's country is met.
Note: Only one rule can be set as default. If you want the gateway to be used only when other rules are not met, set it as 'Default' and leave the 'Countries' field empty.

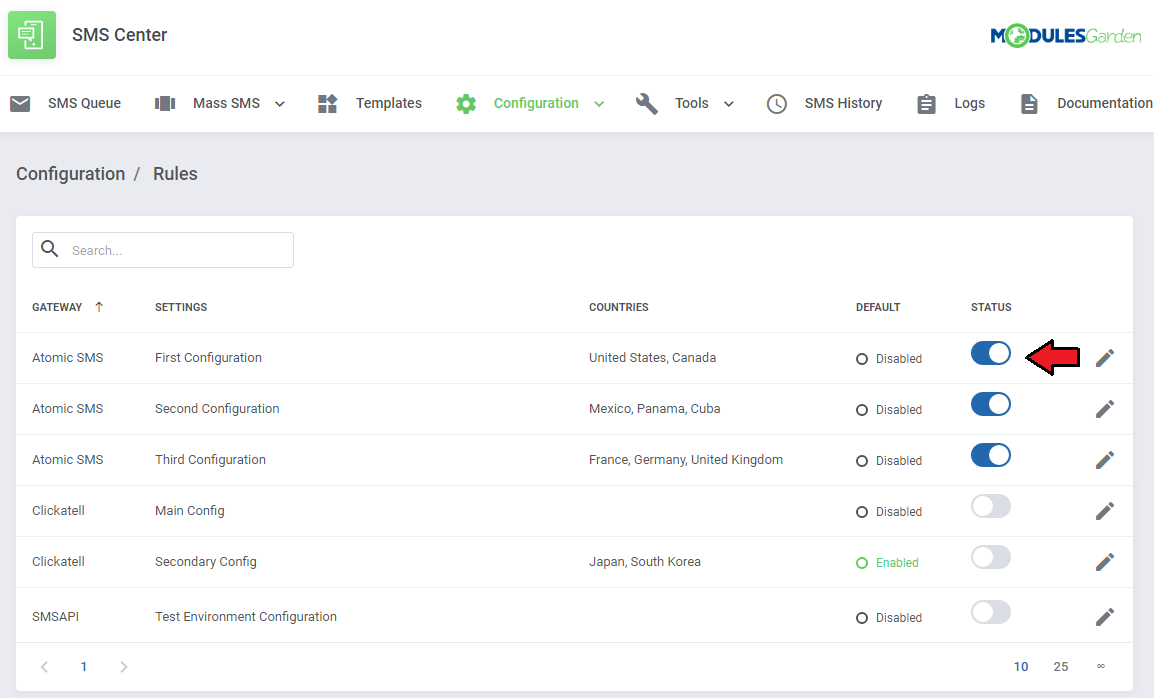

Finally, toggle the status to enable your newly created rules.

# General Configuration

In the 'General' section you can find specific SMS configuration possibilities. Configure those you wish to activate and save changes when ready.

# General Settings

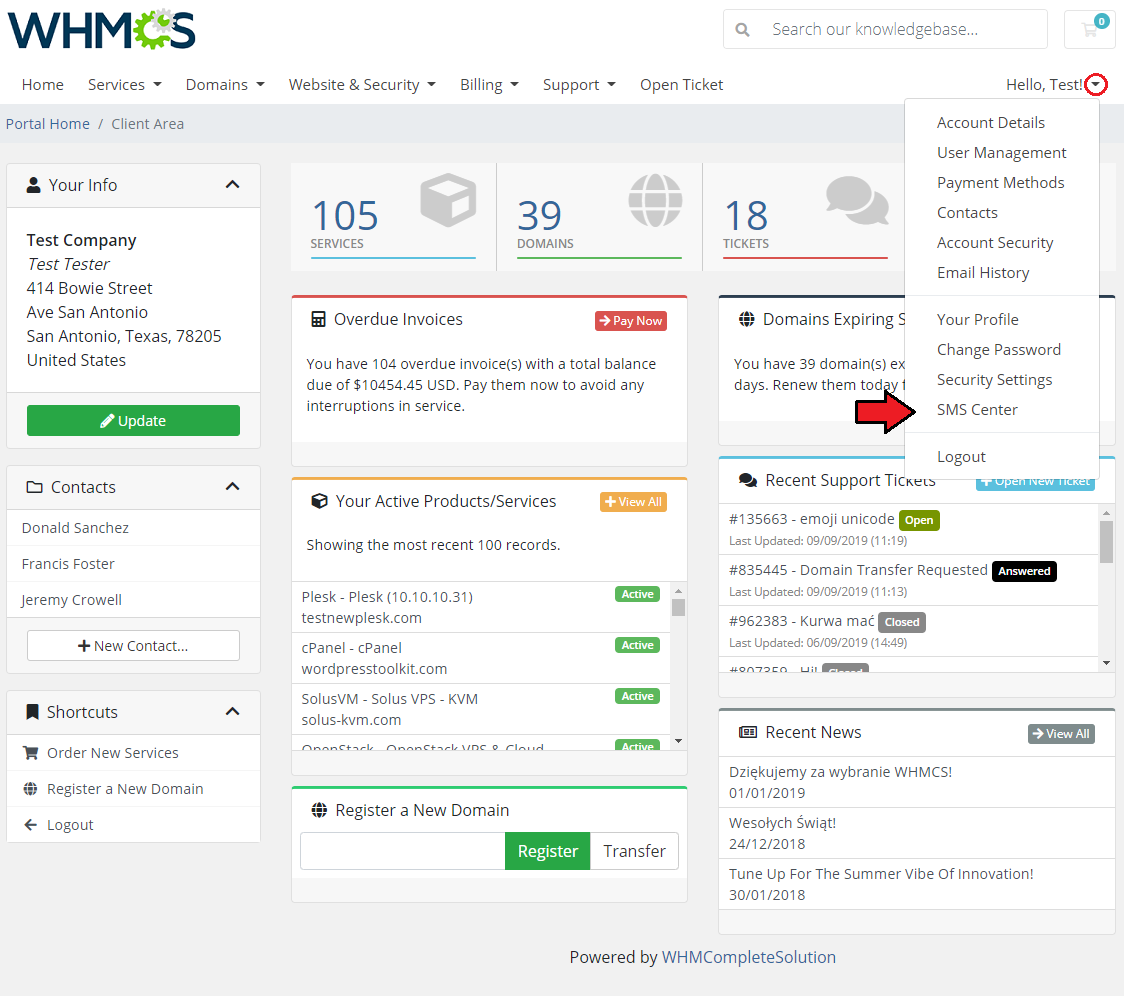

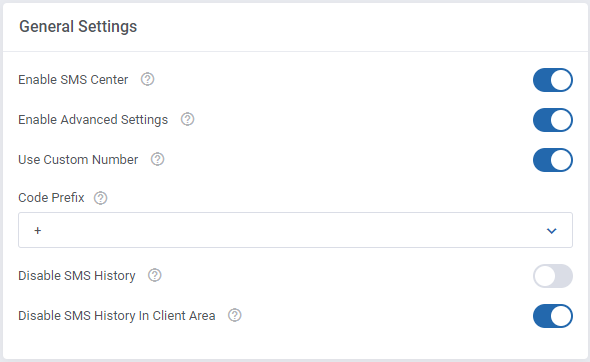

By default, the 'SMS Center' section in the client area is disabled. You may enable it here.
You can also toggle the advanced settings used for advanced gateway configuration (opens new window).
Choose a country code prefix that will be automatically added to the client's SMS number if it has not been specified, or select "None" if the code prefix is already stored.

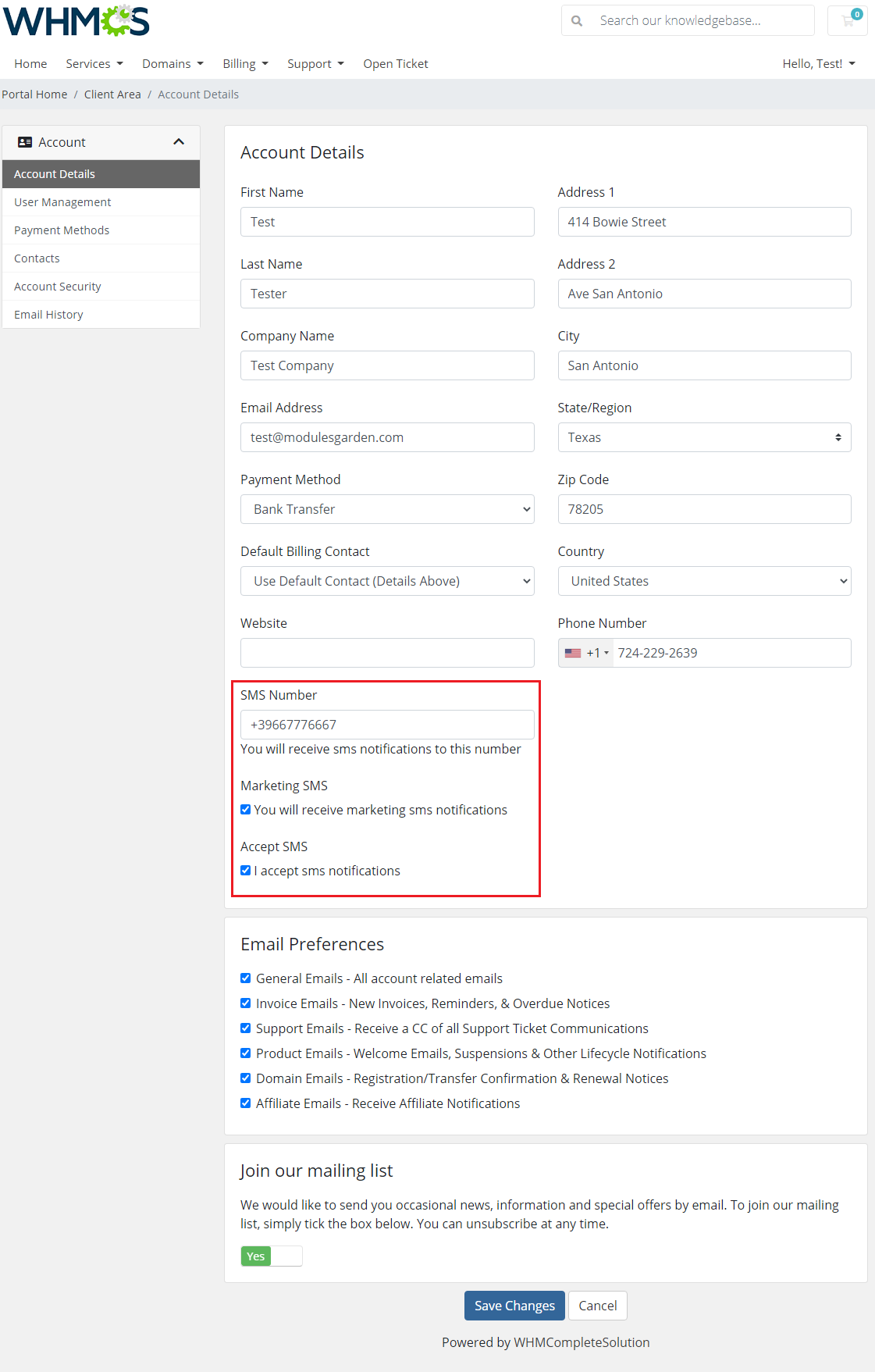

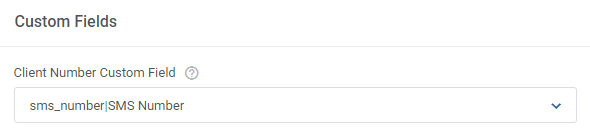

If you want to use a dedicated custom field for your client's SMS number, you can enable this feature here.
Otherwise, the default phone number from the client's profile will be used for sending SMS notifications.
Note: If you enable this feature, do not forget to select which custom fields from the 'Custom Fields' box you wish to use specifically.

# Client SMS Activation

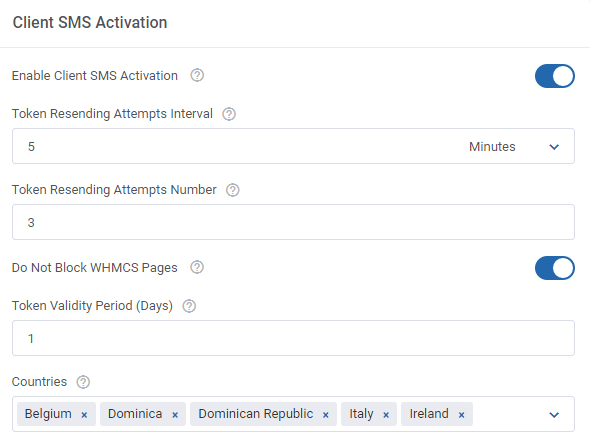

Enable 'Client SMS Activation' to grant each newly activated client a token which they will use to complete the activation process.
Determine time intervals for sending tokens and the maximum number of attempts to resend a token.
Token Validity Period (Days) - define the number of days the token remains valid. After the provided here number of days, a client is marked as unverified.
Type in "0" to disable this option.

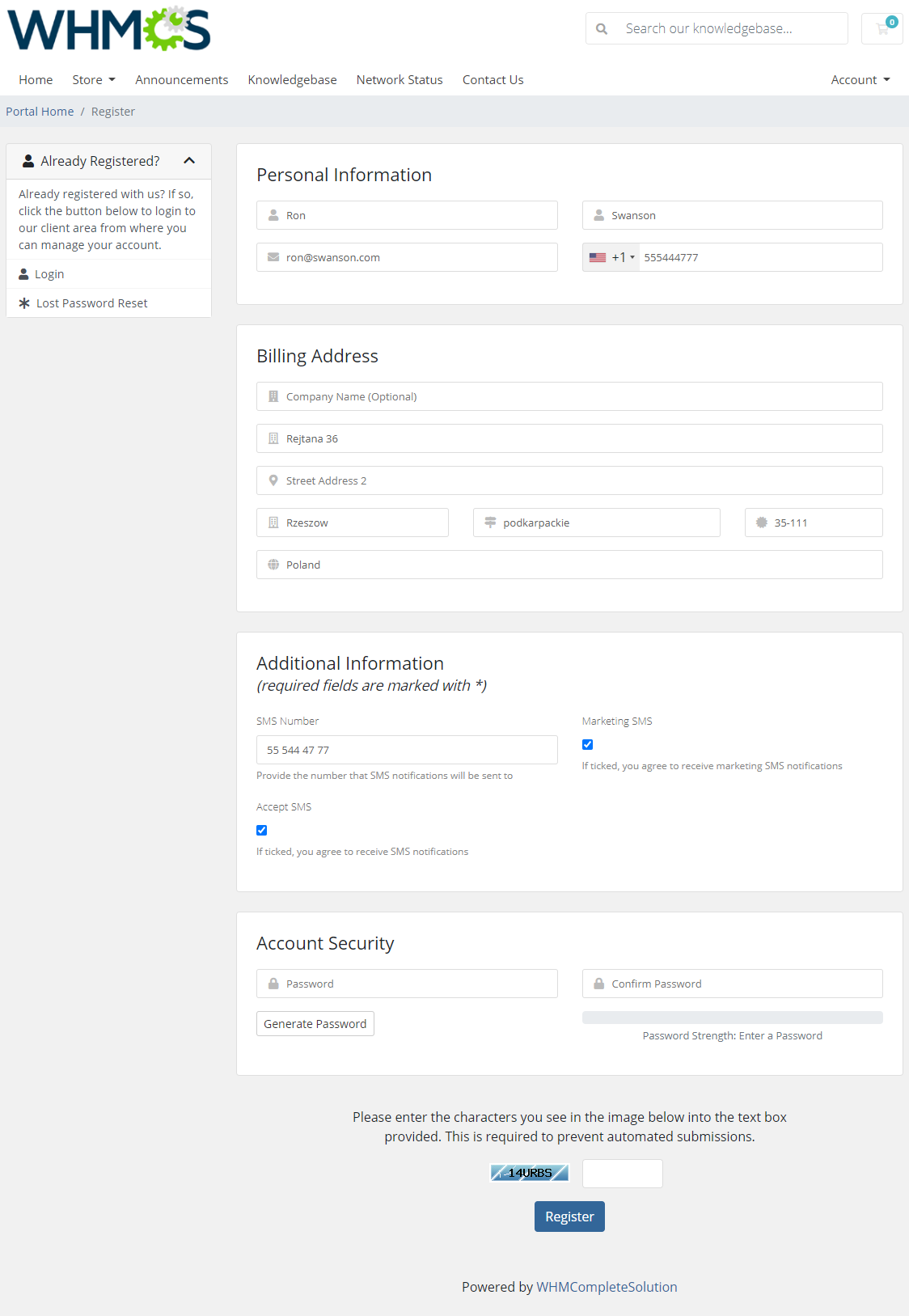

When you enable the above option, the activation process of a new client proceeds in a slightly different way. Start with filling out your client's details.

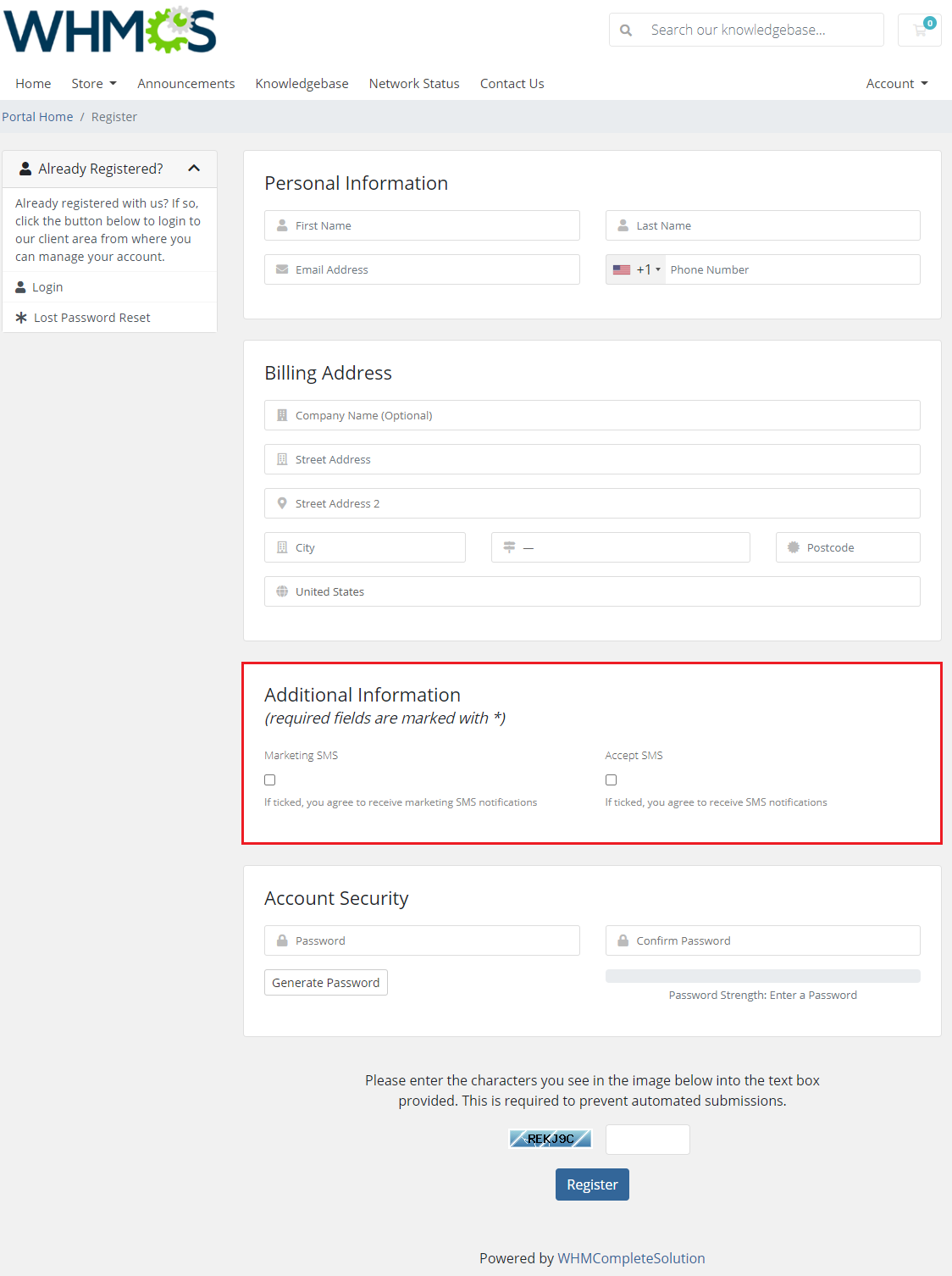

You can also accept the SMS agreements, but it is not required to receive the account activation token through SMS.

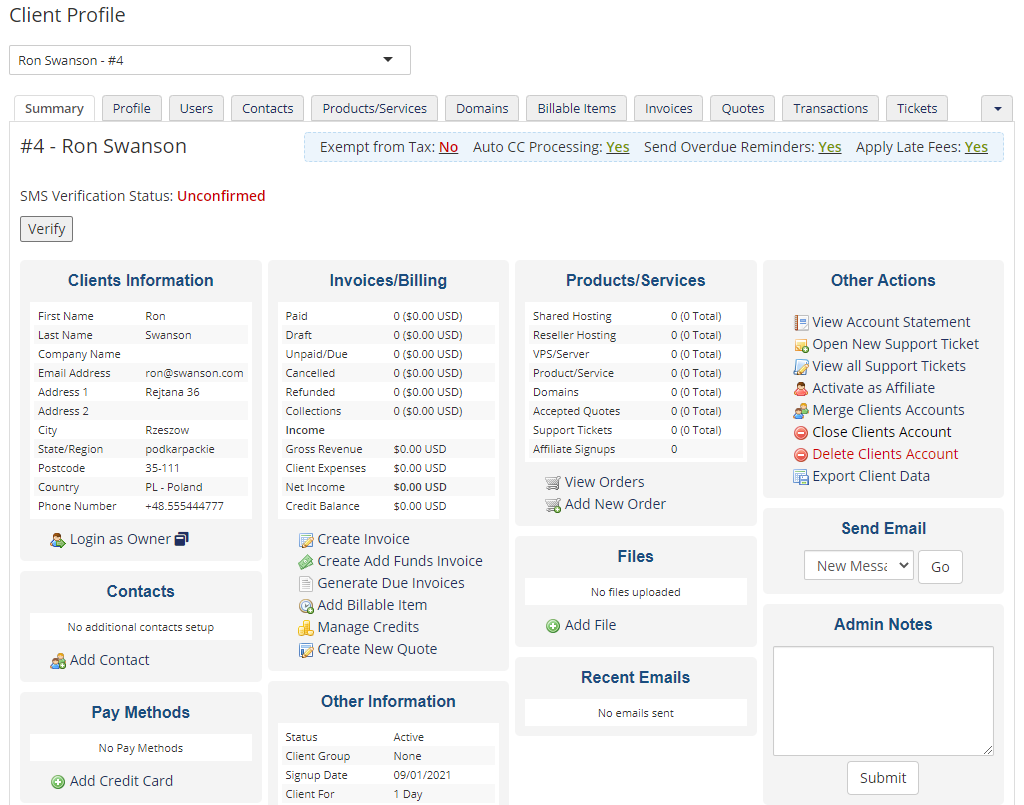

When registered, the client's verification status will be 'Unconfirmed'.

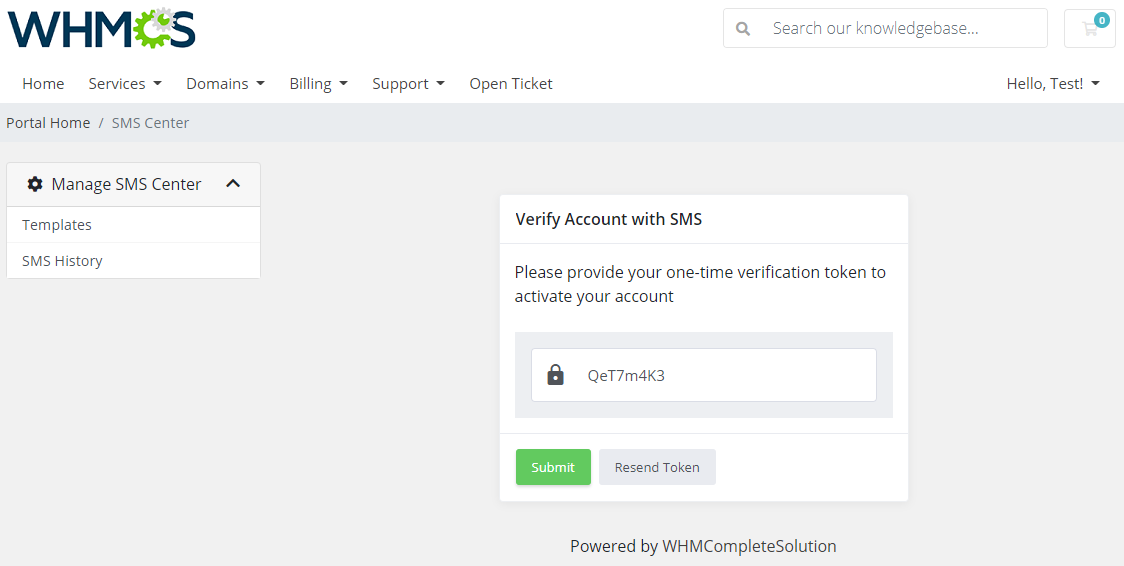

To verify activation after registration, the new client will have to type in a token received via SMS.
If the administrator enables such a possibility, the client may request to send the token again by pressing the 'Resend Token' button.

As an administrator, you can also verify the client's account manually.

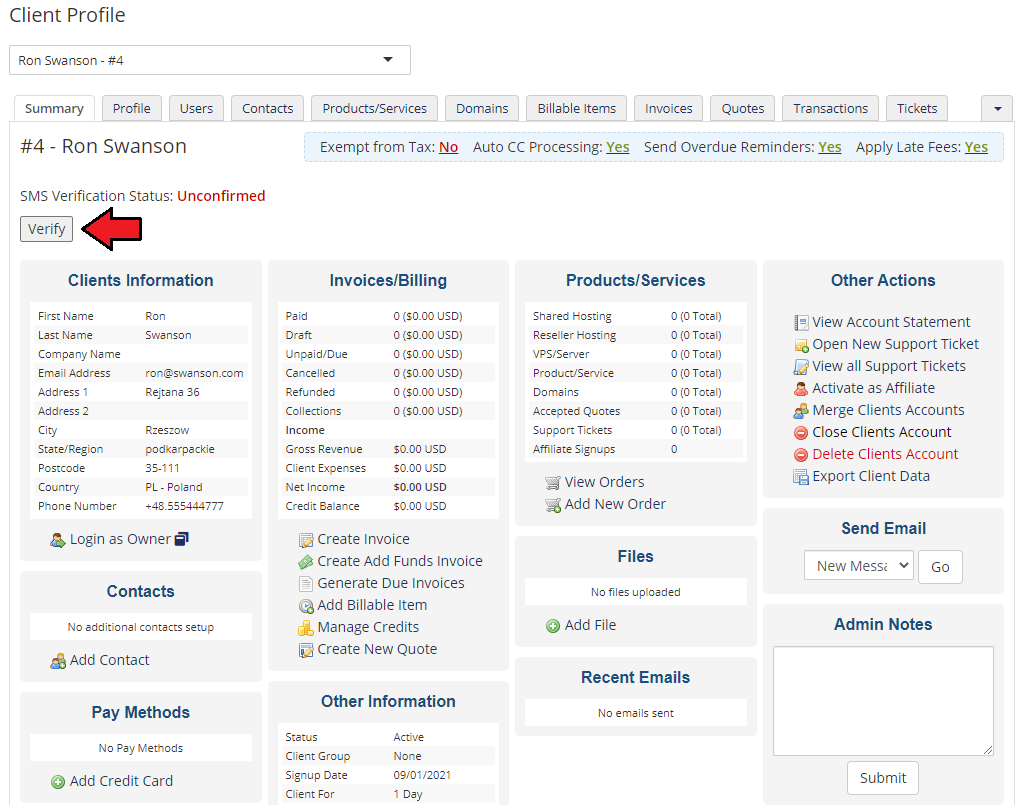

To do so, go to your client's profile and click the 'Verify' button:

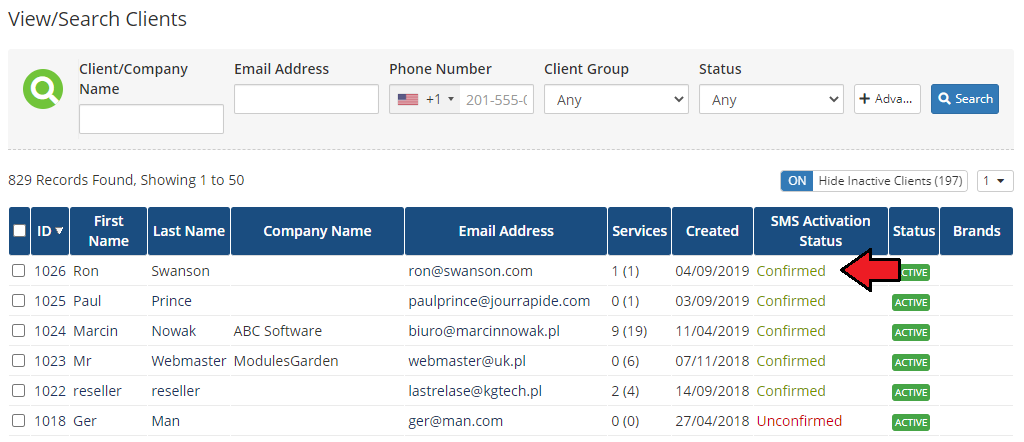

After successful verification, the client's status will change to 'Confirmed'.

Please be advised that whenever the client changes their phone number, their status will change back to 'Unconfirmed' and the verification process will have to be repeated.

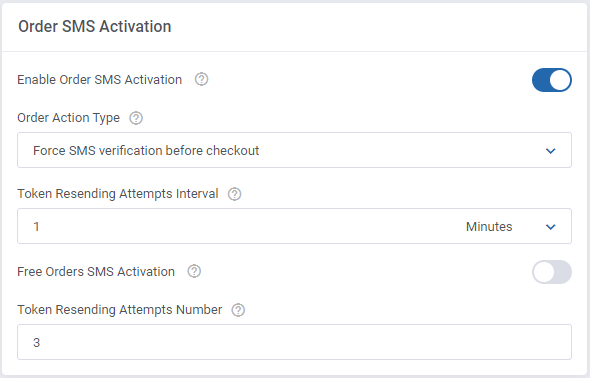

# Order SMS Activation

Enable 'Order SMS Activation' to allow activating orders.
Decide when the order verification shall be forced:

before checkout
after checkout
before & after checkout
A client will receive a text message with a token, which must be then used to move to the next step.
Here you can also define how many times within one hour a client will be allowed to ask for a token to be sent again.
Note: This option does not support order upgrades!

If the above option is enabled, a client will have to enter a valid token received via SMS in order to complete the placed order.
Depending on the settings, you may allow clients to ask for resending the token.
If such an option is enabled, your client will simply need to press the 'Resend Token' button and they will receive another text message.

If the provided token is correct, the order's verification status will change to 'Confirmed'.

# SMS Queuing

Enable this option to allow queuing of text messages. Note that this will not cover tokens sent for activations.
Determine time intervals between the next resending attempts and the total number of messages that can be sent in one attempt.
Finally, choose the time period when text messages will be sent to clients.
Note: Time intervals are based on your current WHMCS server time.
Detailed information on this function is provided here. (opens new window)

# Token Configuration

In this section you can also change default token settings by providing your own token length as well as allowed character sets.
Please note that the allowed set of characters used for generating a token may contain chars from the following range only:

1234567890ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz

Any other special characters like: ", &, >, < or similar may cause unpredictable errors.

# Custom Fields

Finally, select which of the existing client custom fields should be used to provide the client phone number to send messages.
Note: Choose only if you have enabled the 'Use Custom Number' from the 'General Settings', because otherwise the default WHMCS number will be used and any additional custom fields will not be required.

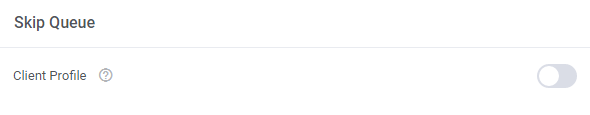

# Skip Queue

If you want the messages that are sent from the client's profile to skip the queue then enable the 'Skip Queue' option.

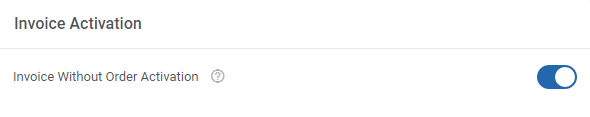

# Invoice Activation

If you want clients to check invoices that are not assigned to any order using a token delivered via SMS, then enable the 'Invoice Without Order Activation' option.

# Logs

Logs are by default turned on, if you want to hide the "Logs" section from the top menu, you may do it here.
It is also possible to set up the logs to be automatically cleared after the specified here number of days.

# Management

# Templates

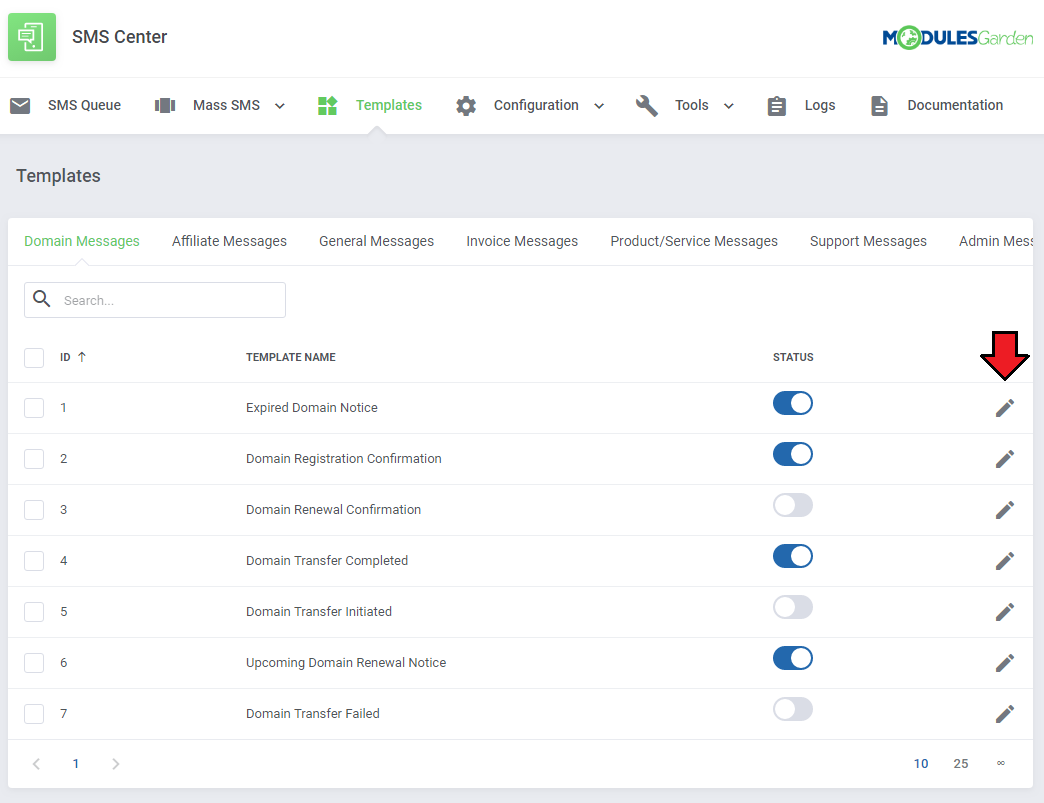

The 'Templates' tab contains the list of message templates. Each email template in your system has its text message counterpart.
Any of these messages can be enabled/disabled by the 'Status' toggle or using the mass actions feature.
Every enabled template in the admin area will then be also visible in the client area, where your clients can decide whether or not they want to receive chosen SMS notifications.
Note: Titles of the message templates can be translated into the module language file.

By default, the module comes with simplified message templates, but you can edit each of them.
First, choose the message category from the tabs above, and then press 'Edit' next to the chosen template.
Note: Custom templates include no content, please add the custom template message by yourself.

The first record on the list is a default message of the template. Our module allows you to define messages in selected languages.
In order to prepare a message in an additional language, press 'Add New Template Language' as shown on the following screen.

As you can see on the screen below, a new window appeared.
Select the desired language from the dropdown menu and add your translated message.
Module template supports merge fields which can be easily inserted into messages.
Simply click on the desired merge field and it will be added to the currently edited version of the message.
Below the message field, there is a characters counter which helps to estimate the message length.
The fixed message characters are counted, if there is a variable used, then the counter estimates the length and displays e.g. "104+".
Note: The Language of sent messages is the client's language. If you do not define a message in your client's language, the default message will be sent instead.

# SMS Queue

In this section, you will find a list of all text messages waiting for a cron run to be sent.
Specific details on messages that can be sent in one attempt are specified in the 'General (opens new window)' section.
If SMS queues are enabled, every single message (except activation tokens) is placed on this list before being sent. With every cron run a previously set number of messages is sent.
If message sending fails (because the number is incorrect, there are problems with the gate, no funds etc.), such SMS remains on the list until the next attempt.
After three failed attempts its status is changed to 'Aborted'. Available actions:

Start - send message manually.
Refresh - use when status has changed to 'Aborted' to bring it back to the queue.
Delete - remove message from the list.

To save time, you can also use mass actions.

# Mass SMS

Sending mass text messages to your clients is a convenient tool that allows preparing messages that will be delivered to a group of clients according to a specified configuration.

# Mass SMS Templates

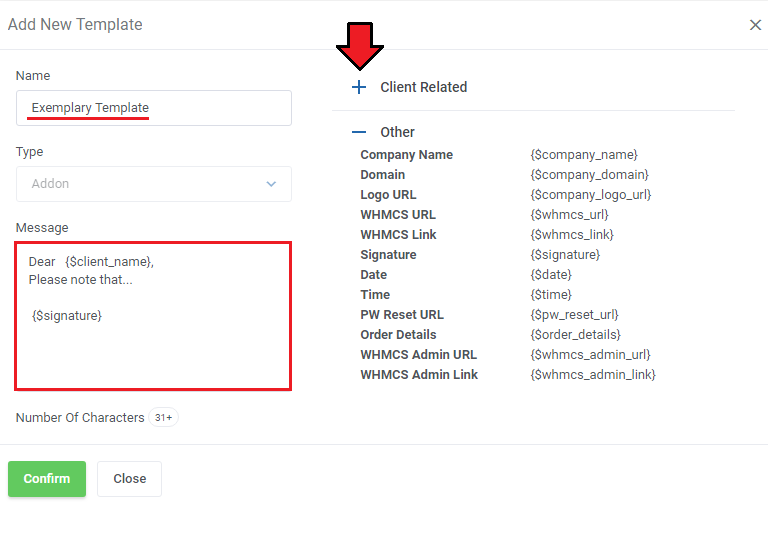

Firstly, move to 'Mass SMS' → 'Templates', and create templates for mass messages there.
To start with, choose a group to which the template will be connected and then press 'Add New Template'.

Enter your template name and type in the message content. Use merge fields available for the group.
Follow the characters counter current rate to estimate the message length.
Do not forget to confirm the changes.

All created templates are free to edit or remove when no longer used.

# Mass SMS Configuration

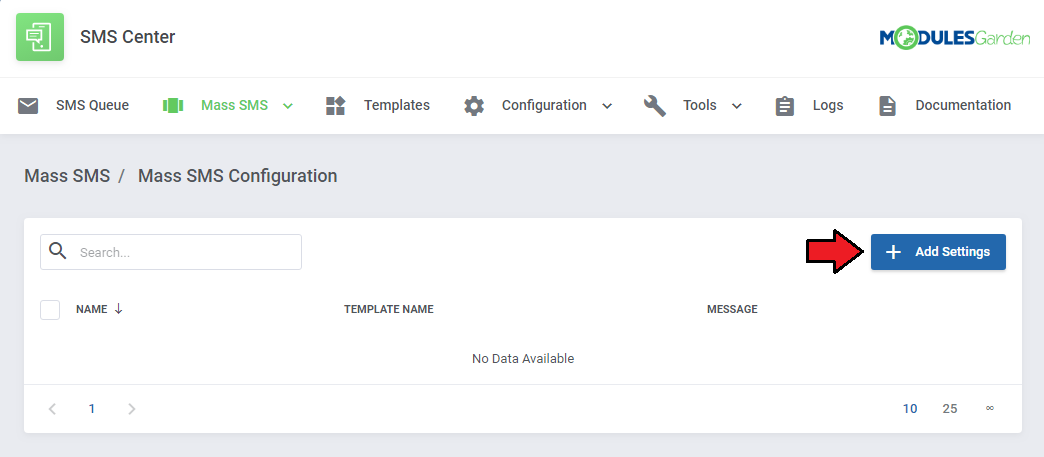

Now that you have created the templates, move to 'Mass SMS Configuration' to configure the recipient group.
Start by adding new settings.

Use filtering fields to set it up as you need. Enter the configuration name and select the type of filtering. You can choose from:

'Client Filters' filtering
filtering according to 'Addons', 'Domains' or 'Products'.
Each filter type configuration differs slightly, but there are some general settings available for each type. These are:
Custom Fields - enable available custom fields
:'Marketing SMS' is a default addon custom field. If you enable it, the message will be sent only to customers who have given their agreement for SMS marketing.
Client Group - select which of your client groups will receive the text message
Client Status - you may choose clients to receive messages depending on their status in your system
Language - select the default language for the messages
Brand Filtering - if you have Multibrand For WHMCS module active, here choose which brand this mass SMS configuration shall be applied to
All the above sections are available for 'General' client filter.

In the next step you can select an SMS mass template created earlier and add some additional filters depending on which of the 'Client Filters' you had selected in the previous step:

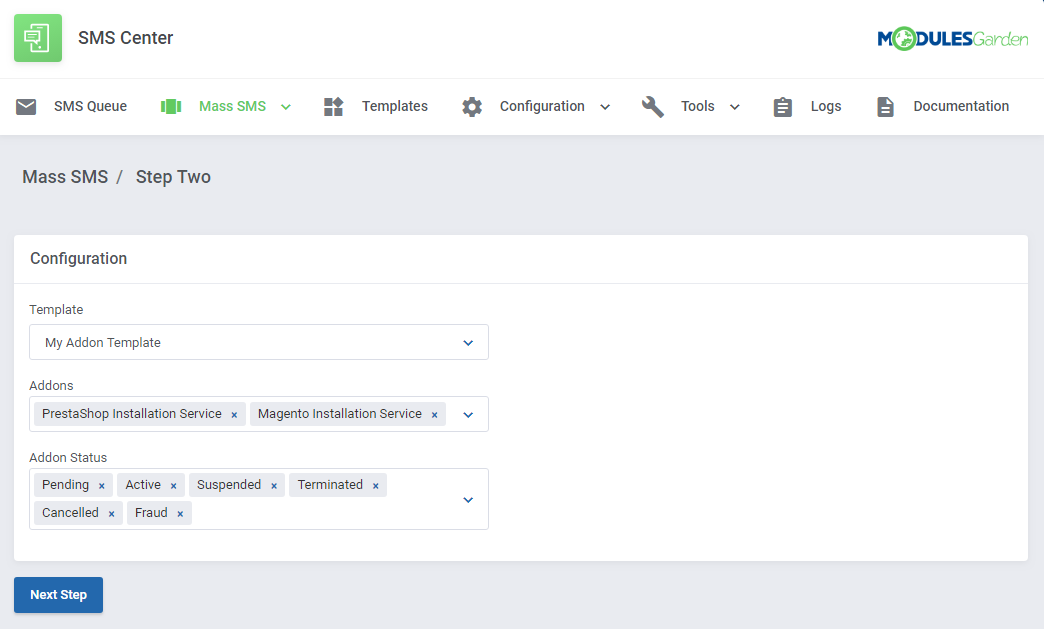

Client Filter - Addon
- select purchased addon
- select addon status

Client Filter - Domain
- select domain status

Client Filter - Product
- select products from the list of purchased ones
- select product status
- select assigned server

In the next step you will see what the final SMS will look like and preview the list of clients who will receive the message (based on the previously selected filters).
If you want to save this filter for later use, click 'Save Filters'.
Surely, you may edit here the list. Add/remove clients from the list to keep it up to date.
If everything is correct, press 'Send' to start sending messages to the clients.

# Tools

# Send SMS

In the 'Tools' → 'Send SMS' you can send your custom SMS directly to any client or phone number using any of your gateways.
Simply type in your message, you may use the available 'Client Related' and 'Other' variables to compose a dedicated message.
Choose the client's default phone or SMS number from the list and choose which of your gateway configurations you want to use to send this message.

Instead of selecting a client's number, you can also enter any number you want. In such case remember to leave the 'Client' field empty and provide a custom number in the field below.
The 'Brand' field is available only if you have the Multibrand For WHMCS module active. Once you select a client, you may choose the brand within which the SMS message will be sent.
If the client is assigned to one brand only, the brand field is filled in automatically and has no impact on sending the message.
Keep in mind that some of the variables such as {$company_name} will be branded in the message.
When the message is ready, press the 'Send' button which will add it to the 'SMS Queue (opens new window)'.

# Clients

In the 'Tools' → 'Clients' you can find list of all your WHMCS clients with their current SMS verification status.
From here you can easily manage the verification status as well as toggle SMS notifications for administrators (opens new window) to receive when a specified customer logs in to the client area.

# Logs

Messages sent to your clients are logged under the 'Logs' tab.
As you can see on the following screen, here you can find detailed information on each message sent automatically to a client notifying them about certain actions.

# SMS History

In this section you will find a precise list of all SMS messages sent recently. If you want to find a particular client or mobile phone number, simply use the search box.

# Client's Summary Page

From the clients' summary page you can send text messages to clients using only a simple box.
Type in the message content into the text field like on the screen below and press 'Send'.

# Client Area

# Opt-In/Out Agreements

To meet the GDPR requirements, the client can decide to opt-in/out from receiving SMS message notifications and marketing messages during the registration process.
Note: You can edit the description of these rules in your 'WHMCS' → 'Setup' → 'Custom Client Fields' section.

After registration, the options can later be changed in the client's profile.
Important: The 'Accept SMS' field will be enabled by default for the already existing clients when you install the module for the first time.

# Notifications Templates

If enabled in general settings (opens new window), a new position will appear in the client area navigation menu.
By pressing it, your client will be moved to the configuration of SMS notification.

Here, your client can choose which notifications to receive. Remember that only templates with the status enabled set in templates configuration (opens new window) will be visible to the clients.
Note: If you are using a custom number field to store clients SMS numbers, make sure they are provided in their profiles. Otherwise, SMS notifications will be unavailable for that clients.

# SMS Center Two-Factor Authentication

SMS center For WHMCS consists of two parts: the actual SMS Center addon and the authentication addon.
Two-Factor Authentication adds an extra layer of protection while logging in.
Once enabled and configured, each time your client signs in, they will be asked to enter both username and password as well as the second factor like a security code.
In order to activate it, proceed to 'System Settings' → 'Two-Factor Authentication'.
Afterward, find 'SMS Center Two-Factor Authentication,' and press the 'Activate' button.

In the next step you need to configure the addon settings.
To do so, fill out the data:

Enable for Clients - choose this option if you wish all clients to authenticate while logging in to their accounts.
Enable for Staff - choose this option if you wish all administrators to authenticate while logging in to their accounts.
Activation Code Valid For - decide how long (in minutes) a received code will be valid. Used once before the first log-in.
SMS Code Valid For - decide how long (in minutes) a received via SMS code will be valid. Used every time to log in after the first authentication.
Code Length - specify how many characters will be required by a code.
Allowed Characters - define which characters can be used to generate codes. Please note that the allowed set of characters used for generating a token may contain chars from the following range only:

1234567890ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz

Any other special characters like: ", &, >, < or similar may cause unpredictable errors.

# Security Settings

# Clients

If you have activated the 'SMS Two-Factor Authentication' addon, your clients will be allowed to decide if they wish to use such a security option.
Here is how to enable this functionality:

Log in to your client area, proceed to 'Account Details' → 'Security Settings'.
There is a button that enables two-factor authentication configuration for the client.

Press the 'Get Started' button to proceed with the process.

Provide a phone number to proceed with SMS Two-Factors Authentication. Press 'Activate.'
Note: This step is obligatory, no matter if the client has already provided a valid SMS number in the profile.

A client should receive now an authentication code via SMS.
Provide the code in the field and press 'Activate'.
Note: Remember that the code is valid only temporarily, according to the addon settings!

Two-Factor Authentication is now complete.
Important: Remember to note and keep your backup code in a secure place!

The second factor will now be required in the next login attempt. Wait for the SMS with the verification code and enter it in the appropriate field.
If you have any problems with receiving/entering the verification code, you can use your backup code.
Important: In such a situation remember to note and keep your new backup code in a secure place!

In case there are clients who, for some reason, do not have the required phone number provided, you may turn off 2FA for such clients only.
Use the below script to turn off the 2FA for such clients:

php -q /yourWHMCS/modules/addons/sms_center/cron/cron.php Reset2FA

Please make sure you have used a full and correct path to the module cron file.
Once you run this script, you will find information in the 'Logs' section about the 2FA being turned off for a particular client account.
After the script turns off the 2FA, the client may log into the client area without the need to provide the 2FA token.
If the client wants to use 2FA security, he must turn it on again for his account (Security Settings).
He will get the option to provide the required phone number to be able to receive the authentication token during future login attempts.

# Administrators

If the 'SMS Two-Factor Authentication' addon has been activated and enabled for staff, you will be able to decide as administrator if you wish to use such a security option.
Here is how to enable this functionality:

Proceed to 'My Account.' Find 'Two-Factor Authentication' and enable it to start the Two-Factor Authentication process.

Press the 'Get Started' button to proceed with the process.

You will now receive an authentication code via SMS.
Type in the code in the field and press 'Activate.'
Remember that the code is valid only temporarily, according to the addon settings!

If the entered code is correct, you will see the proper information.
There will also be a backup code which must be copied and saved securely to log in with in case of some issues.
The second factor is now required to log in. Wait for the SMS with the verification code and enter it in the field. Press 'Login.'
If you have any problems with receiving/entering the verification code, you can use your backup code.
Remember to note and keep your new backup code in a secure place!

# SMS Center and WHMCS API Integration

Below you can find a short instruction on how to integrate your SMS Center For WHMCS with the WHMCS API.

Function name:'sendsms'
Required parameters:
- (phonenumber) OR (userid) OR (adminid)
- :AND
- (messagename) with (relid) - ID of relation, for example invoice or service OR (message) - text of the message
Where:
(Relid) for (userid) is an 'integer'
(Relid) for (adminid) is an 'array'
A typical example for sending an SMS with a specified message to the user with a given ID:

localAPI('sendsms', array('userid' => $_POST['userid'], 'message' => $_POST['message']), 'admin');

An example of usage for admin 'array' with parameters:

array('admin' => 1,'phonenumber' => $number, 'messagename' => 'Service Unsuspension Successful',
'relid' => array('client' => $params['params']['userid'], 'service' => $params['params']['serviceid']))

In case you add phonenumber in the message, you have to specify whether it is an admin's number by entering: 'admin' => 1, just like in the example above.
You do not need to add the above parameter for a user's number.

SMS Center For WHMCS does also support the 'force' parameter. If set to 'true', it allows to skip the queue for sending SMS messages and proceed with the task immediately.
As an example:

localAPI('sendsms', array('userid' => $_POST['userid'], 'message' => $_POST['message'], 'force'=> true), 'admin');

# Custom Gateway In SMS Center

Below you can find a short instruction on how to implement a new SMS gateway into the SMS Center For WHMCS module by yourself.
Follow the below steps:

Firstly, create a new PHP class in the directory:

/modules/addons/sms_center/app/Libs/Sms

which inherits the class:

*ModulesGarden\SmsCenter\App\Libs\AbstractSms\AbstractSubmodule

Inside that class, create the following two fields

$name - the name of the SMS gateway that will display in the "SMS Module" column inside the addon (marked as "1." on the screenshot below).
$description - a link to the SMS Gateway's website - this link will be displayed in the column "Description" (marked as "2."' on the screenshot below).

Here is an example of what those fields should look like in the file:

public static $name                = "Gateway Name";
public static $description         = '<a href="https://gatewayName.com/" target="_blank">www.gatewayName.com</a>';

The next steps to follow here will be to define various functions inside the class.
The first one to define is getConfiguration(), which is used to build the gateway configuration form. The field types available to build this form can be found in the following class:

ModulesGarden\SmsCenter\App\Helper\SubmodulesHelper\MG_SMS_SubmoduleConfiguration

Here is an example of a function that can be defined here - adding this block to your file will create a form comparable to one you can view in the screenshot below:

public static function getConfiguration()
{
return array(
'username'    => array(
'validators' => array('required'),
'description' => true;
),
'public_key'  => array(
'validators' => array('required'),
),
'from'        => array(
),
'debug_mode'  => array(
'type'    => MG_SMS_SubmoduleConfiguration::TYPE_SELECT,
'options' => array('disable', 'enable'),
),
);
}

Another function to define is checkConnection() - this button is usually used to send a request that returns the information concerning the available balance on the SMS Gateway account.
The button in question can be seen here:

The function sendMessage($message, $number) should contain the logic used to send SMS messages - i.e. this function is used to handle the API of the gateway.
The parameters:
- $message - contains the main content of the SMS message
- $number - the phone number onto which the message will be sent (including the country code)
Some additional tips

You can access the gateway configuration data via

$this>configuration['{name_of_configuration_field}'];

You can replace "name_of_configuration_field" with any field, for example

$this->configuration['username'];

Any time the module throws out an exception, you will receive the following error message: 'The connection test has failed:'

Below, you can find an example of a full class that contains all the above described functions. You can use that example as reference when adding your own gateway to the module.

<?php
namespace ModulesGarden\SmsCenter\App\Libs\Sms;
use ModulesGarden\SmsCenter\App\Libs\AbstractSms\AbstractSubmodule;
use \ModulesGarden\SmsCenter\App\Helper\SubmodulesHelper\MG_SMS_SubmoduleConfiguration;
class Exmaple extends AbstractSubmodule{
public static $name                = "Exmaple";
public static $description         = '<a href="https://example.com/" target="_blank">www.example.com</a>';
public function checkConnection()
{
$username = $this->configuration['username'];
$url = 'https://payments.example.com/query/wallet/balance?username='.$username;
$this->sendRequest($url);
}
public static function getConfiguration()
{
return array(
'username'    => array(
'validators' => array('required'),
),
'public_key'  => array(
'validators' => array('required'),
),
'from'        => array(
),
'debug_mode'  => array(
'type'    => MG_SMS_SubmoduleConfiguration::TYPE_SELECT,
'options' => array('disable', 'enable'),
),
);
}
public function sendMessage($message, $numbers)
{
$username = $this->configuration['username'];
$url = 'https://api.example.com/version1/messaging';
$params = [
'username' => $username,
'to' => $numbers,
'message' => $message,
];
if($this->configuration['from'])
{
$params['from'] = $this->configuration['from'];
}
$this->sendRequest($url, $params);
}
private function sendRequest($url, $postFields = null)
{
$apikey = $this->configuration['public_key'];
$ch = curl_init();
curl_setopt($ch, CURLOPT_URL, $url);
if($postFields){
curl_setopt($ch, CURLOPT_POST, 1);
curl_setopt($ch, CURLOPT_POSTFIELDS, http_build_query($postFields));
}
curl_setopt($ch, CURLOPT_RETURNTRANSFER, true);
curl_setopt($ch, CURLOPT_TIMEOUT, 60);
$header[] = "apiKey: $apikey";
$header[] = 'Accept: application/json';
curl_setopt($ch, CURLOPT_HTTPHEADER, $header);
$response = curl_exec($ch);
if ($response == false)
{
$curlError = curl_error($ch);
if ($this->configuration['debug_mode'] == "enable")
{
$this->saveLog($url, $postFields, 'Curl error: ' . $curlError);
}
throw new \Exception('Curl error: ' . $curlError);
}
$jsonResponse = json_decode($response, true);
if ($this->configuration['debug_mode'] == "enable")
{
$this->saveLog($url, $postFields, $response);
}
if(empty($jsonResponse)){
throw new \Exception($response);
}
if(!empty($response['SMSMessageData'])){
if($response['SMSMessageData']['Recipients'][0]['status'] != 'Success'){
throw new \Exception($response['SMSMessageData']['Recipients'][0]['status']);
}
}
return $response;
}
private function saveLog($endpoint, $request ,$response)
{
logModuleCall(
'MG_SMS_Example', $endpoint, $request, $response, ""
);
}
}

# Tips

You may customize the 'Two-Factor Authentication' verification message text delivered to a user.
E.g. the default messages are: 'Your activation code is: erkhq34j329' and 'Your login code is erkhq34j329'
Change the message content in the addon language file by editing the following records:

$_LANG['clientArea']['2FA']['loginCode']    = 'Your login code is :token:';
$_LANG['clientArea']['2FA']['activateCode'] = 'Your activation code is :token:';

Invoice special merge fields clarification:
$invoice_items merge field is an array and should always be used within a 'foreach' clause to be displayed correctly
$invoice_items used with {$i.description} displays all content including dates and domain name
Example of usage:

{foreach from=$invoice_items item=i}
{$i.description}
{/foreach}

$invoice_domains_registered special merge field that shows only the domain name.
Example of usage:

{foreach from=$invoice_domains_registered item=i}
<p>DOMAIN REGISTERED: {$i}</p>
{/foreach}

Information on any errors that a cron task might encounter while being executed are stored in the following file:
'storage/logs/cron_log'
Check the file content for cron error details.
There is the possibility to switch on all templates for all your clients. To do so, please follow these steps:
- Log in by ssh
- Proceed to your_whmcs/modules/addons/sms_center/shell
- Enter this command if you want to set the default templates for clients that have the Accept SMS' option enabled:
```
php -q runTask.php --taskName templates --taskAction setDefault
```
- Provide this command if you want to set the default templates for all your clients:
```
php -q runTask.php --taskName templates --taskAction setDefaultAll
```
If you want to delete logs, you may need the following command. Firstly, proceed to <whmcs>/modules/addons/sms_center/shell and run the task:

php runTask.php --taskName clear --taskAction logs

The messages sent by our module are divided into four categories:
- Messages sent automatically to clients after the occurrence of specified actions (activity is logged in the addon's 'Logs' tab).
- Messages sent automatically to administrators after the occurrence of specified actions (activity is logged in WHMCS 'Module Log').
- Messages sent manually from client's profile (activity is logged in WHMCS 'Module Log').

# Update Instructions

An essential guidance through the process of updating the module is offered here (opens new window).
When updating the module, remember to remove the old module files before uploading the new ones (step three (opens new window)).
This step is required to ensure that only the current files remain.
Important: When updating the module from version 2.x to 3.x, you need to start the migration process to move settings from the previous version to the new one.
To do this, first update your module files to the newest version and set recursively writable permissions for storage directory in 'yourWHMCS/modules/addons/sms_center/' location.
Next, execute the following script in your server's console:

php -q /yourWHMCS/modules/addons/sms_center/shell/migrationTo3_0_0.php

Do not forget to replace 'yourWHMCS' with your WHMCS root location.
The migration process covers: the configuration of SMS gateways, general settings, chosen template notifications by clients, administrators' phone numbers, SMS queues, SMS templates and Mass SMS templates.
Any other settings might not be migrated!

# Upgrade Guide

Seeking a solution that offers greater flexibility, customization tailored to your precise needs, and unrestricted availability?
There is an option that not only proves to be cost-effective in the long run but also includes prioritized support services, making it a truly valuable investment.

Opt for the Open Source version (opens new window) of your SMS Center For WHMCS module to unlock these benefits.
Simply click on either the Get Source Code or Upgrade To Lifetime button found on the product's page in our client area to complete the one-step upgrade process, with a dedicated discount already applied.

Follow a comprehensive guide (opens new window) covering the transition process, the advantages it brings, and step-by-step instructions on what to do next after the order has been successfully finalized.

# Common Problems

When you have problems with connection, check whether your SELinux or firewall does not block ports.
The module is currently not compatible with:
- Resellers Center For WHMCS (opens new window)
- Lagom Smart Order Form For WHMCS (opens new window)
  It is advised not to use the modules mentioned above at once.
